IBM Thinkpad 220

The joint venture between IBM and Ricoh was called RIOS and it came out with some cool ideas, each with code names. An early, unreleased IBM ultraportable was the 200, which was codenamed 'Monolith'. The team went on to develop the 220 and 230Cs. This codename was also seen in production on one of the PCBs inside the PT PC110 (which was perhaps a little too-far removed from the specification of the Thinkpad to get the name, but you could think of its as the PadThink 210) as 'a' Monolith. This all happened before the Monolith 'team' ended their reign of flawed, early 'ultraportables and the 'small notebook' came-of-age and the 235 and 240 was released.

The Thinkpad 220 is not such a difficult machine to get, but its very difficult to get in good working condition. The plastic used to make them tends to scratch easily, and with age has gone quite brittle. The machine ran from AA batteries, which in many cases have been left in situ and leaked. The 'Gameboy' display is delicate, impossible to replace and suffers from both Vinegar syndrome and LCD rot.

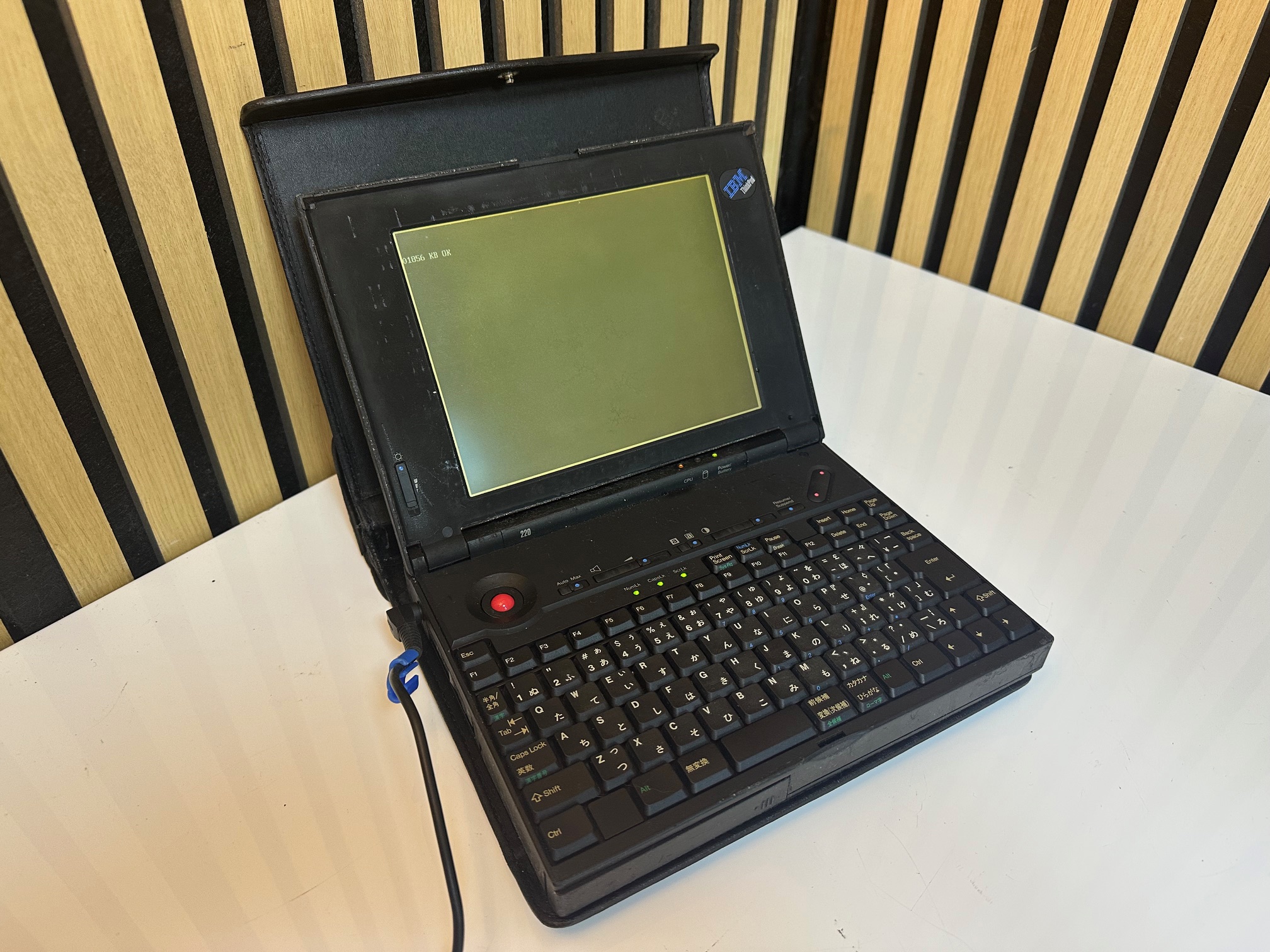

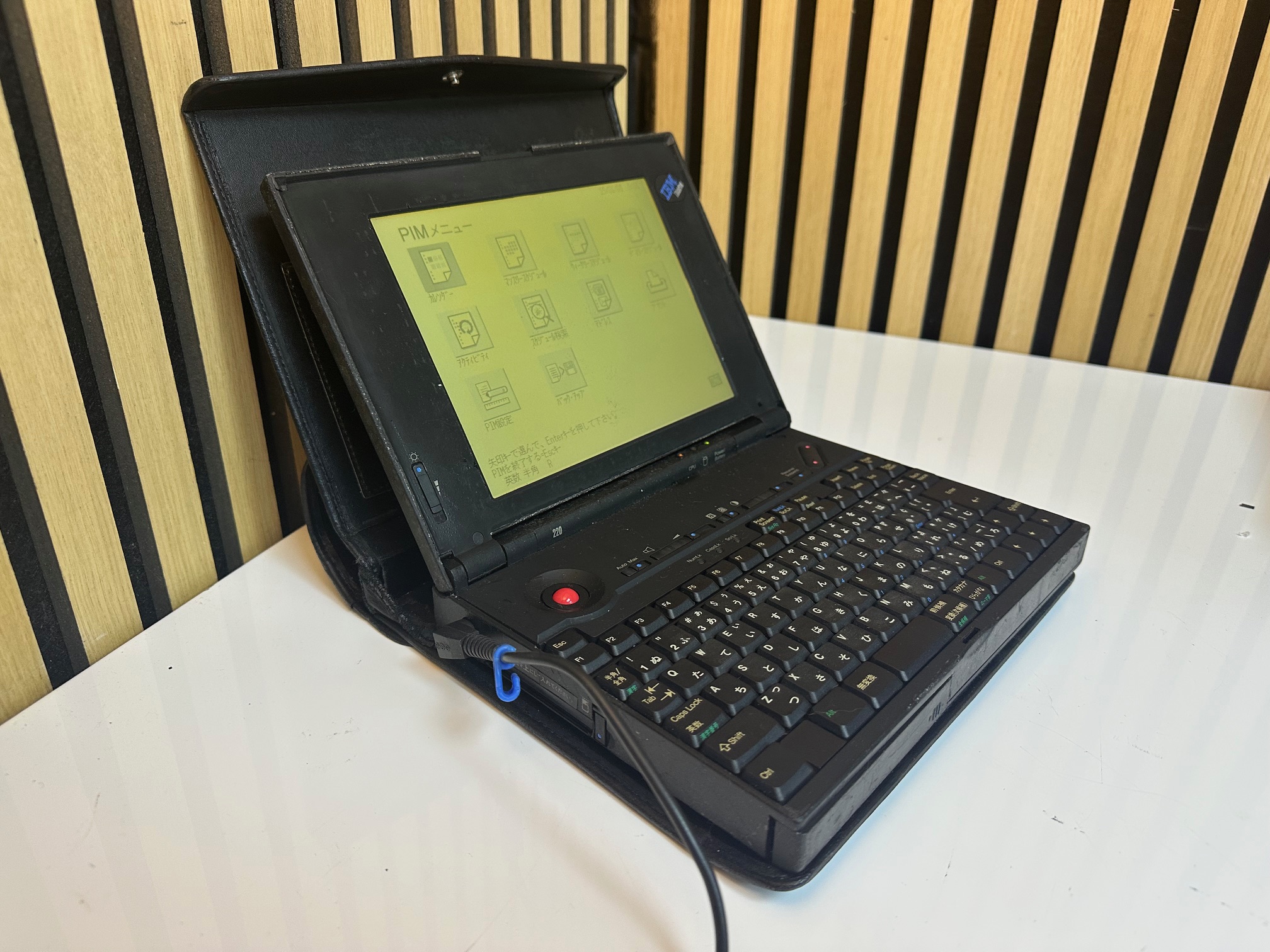

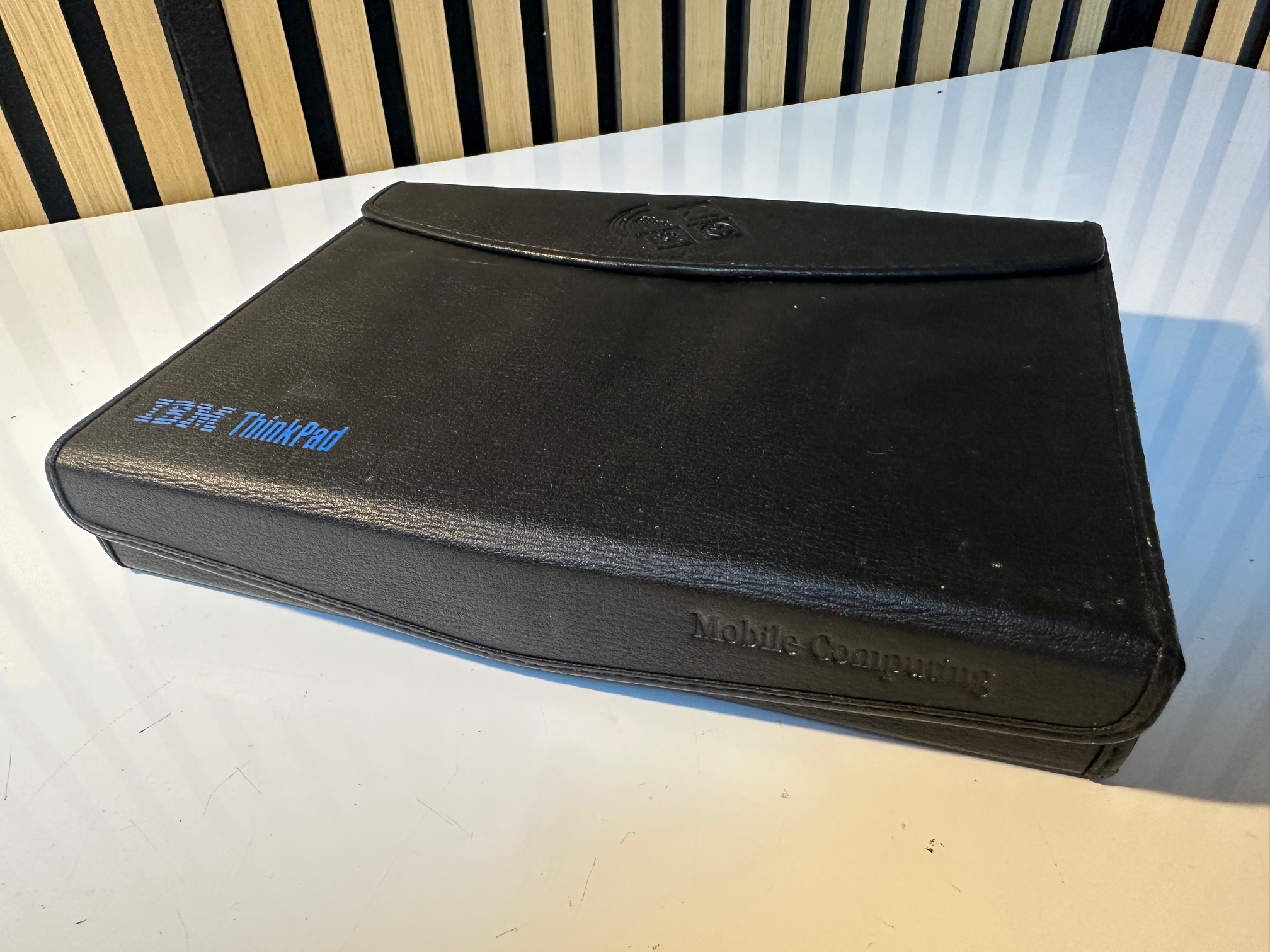

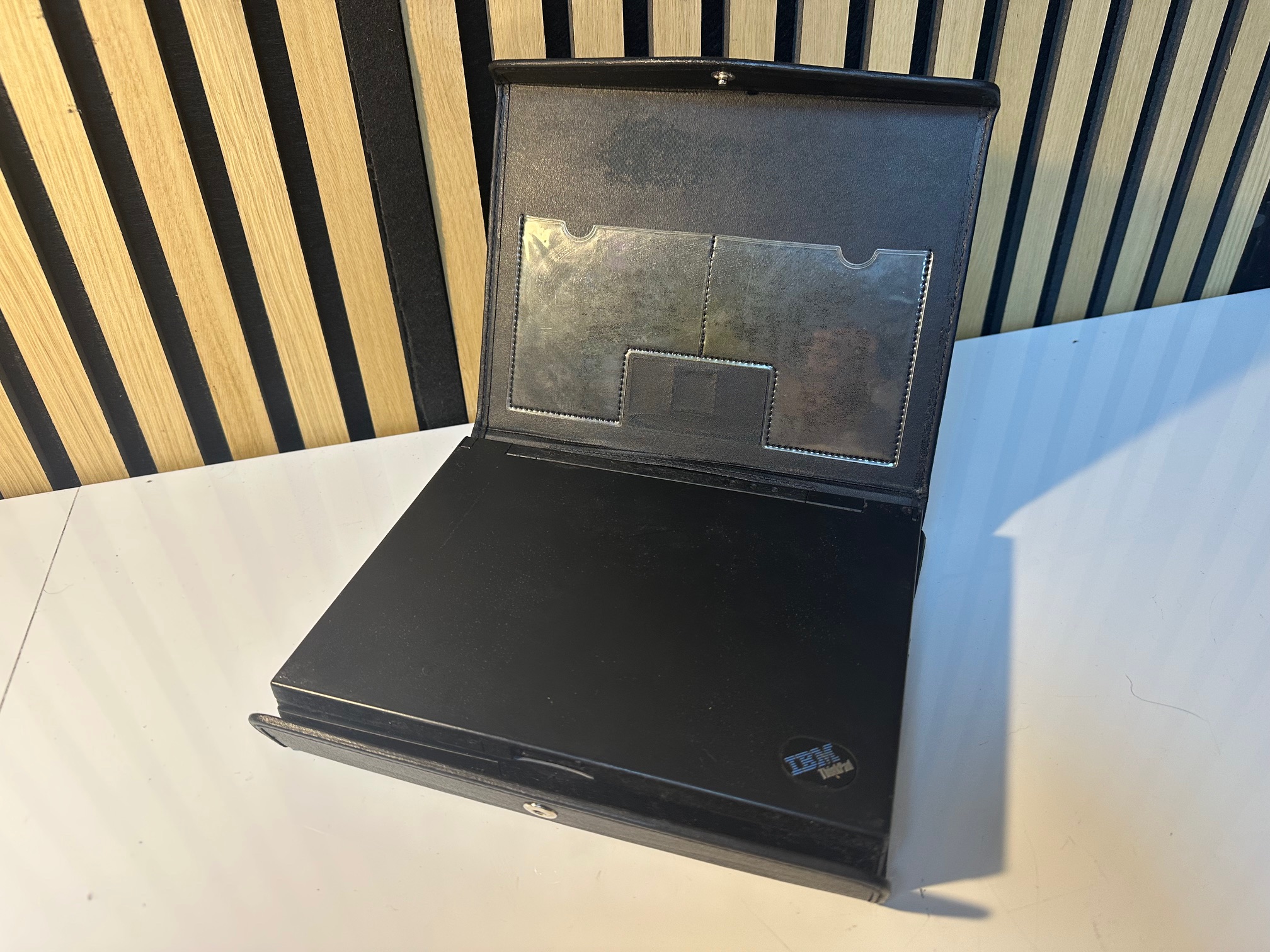

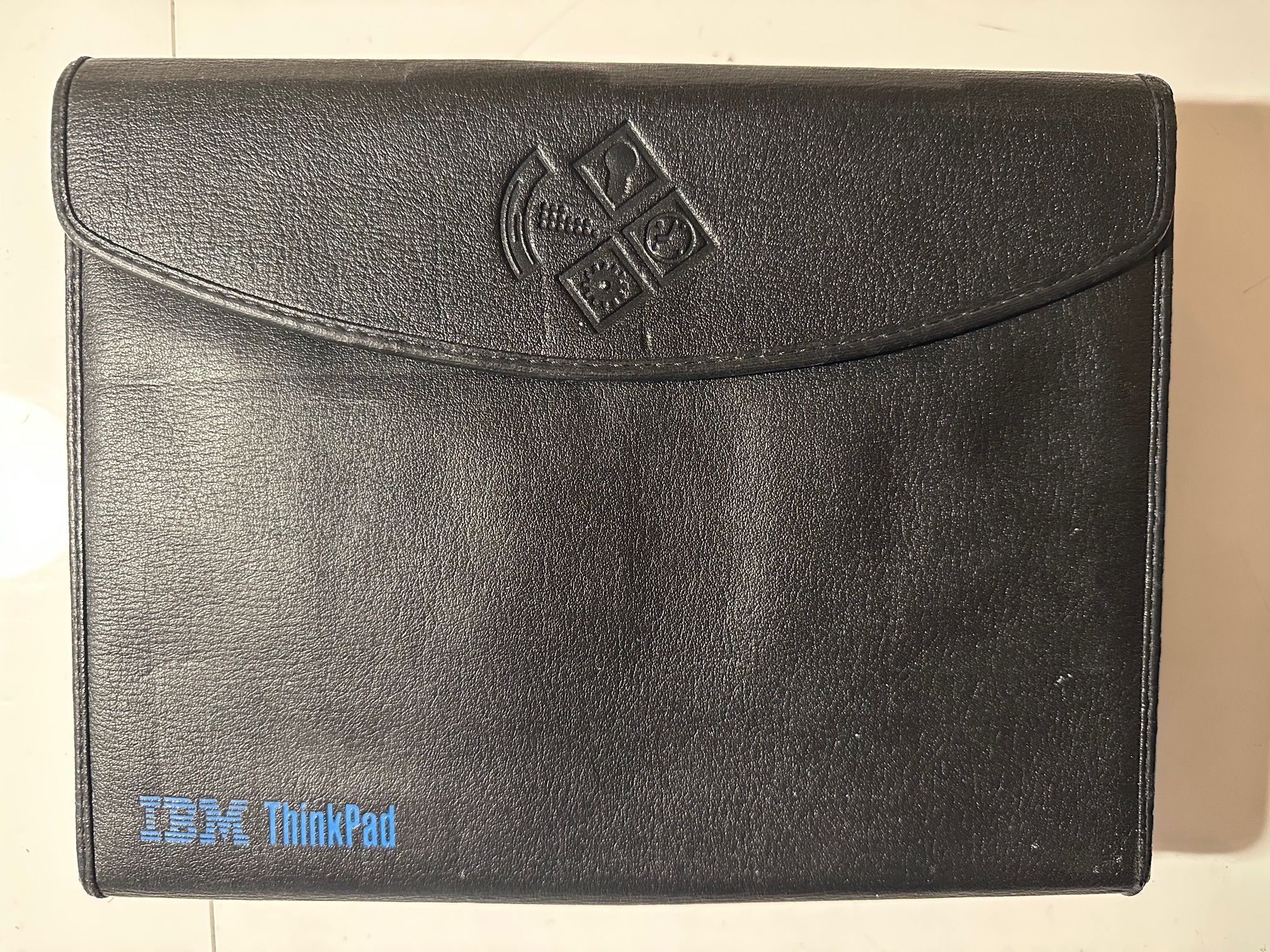

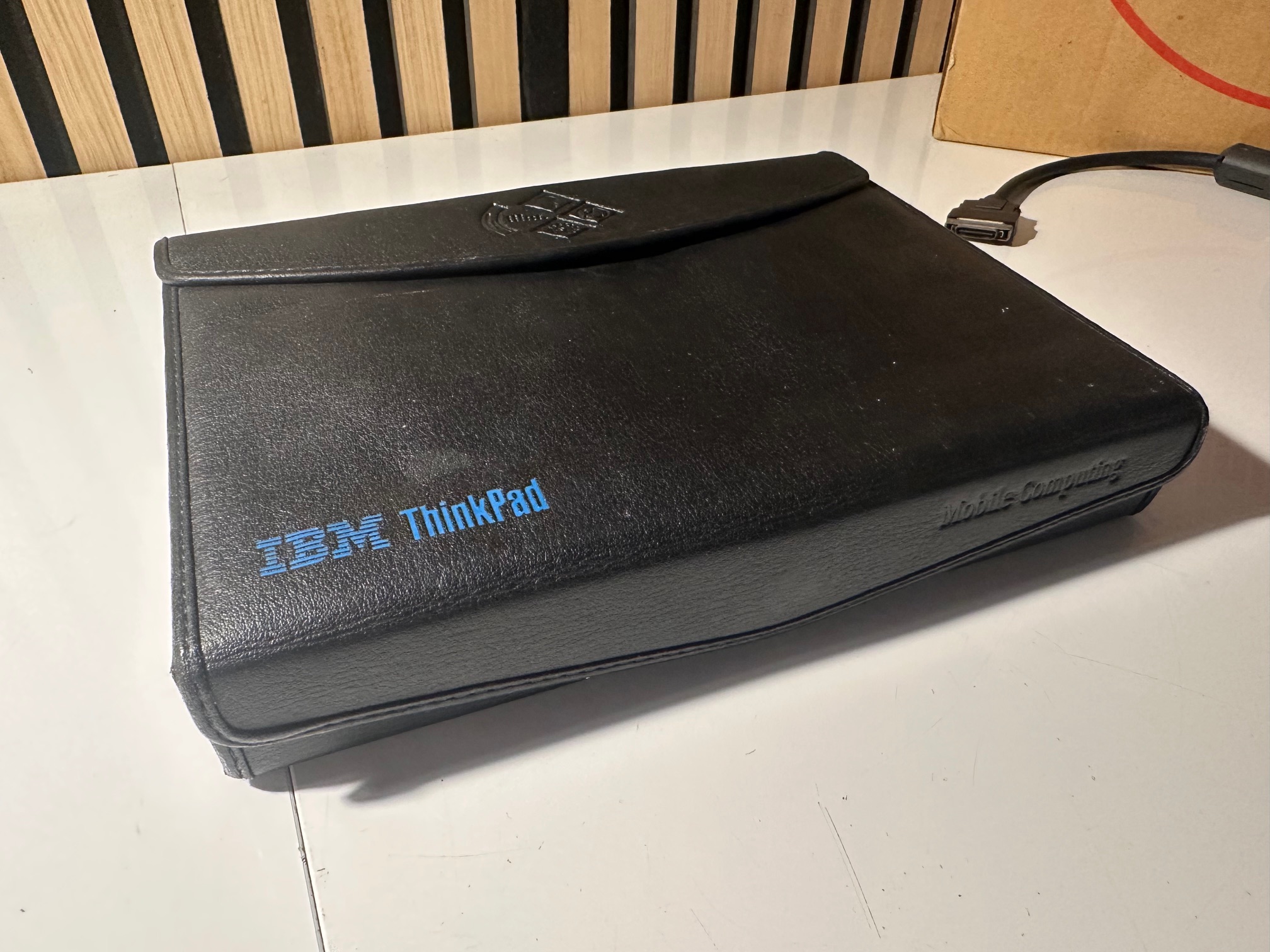

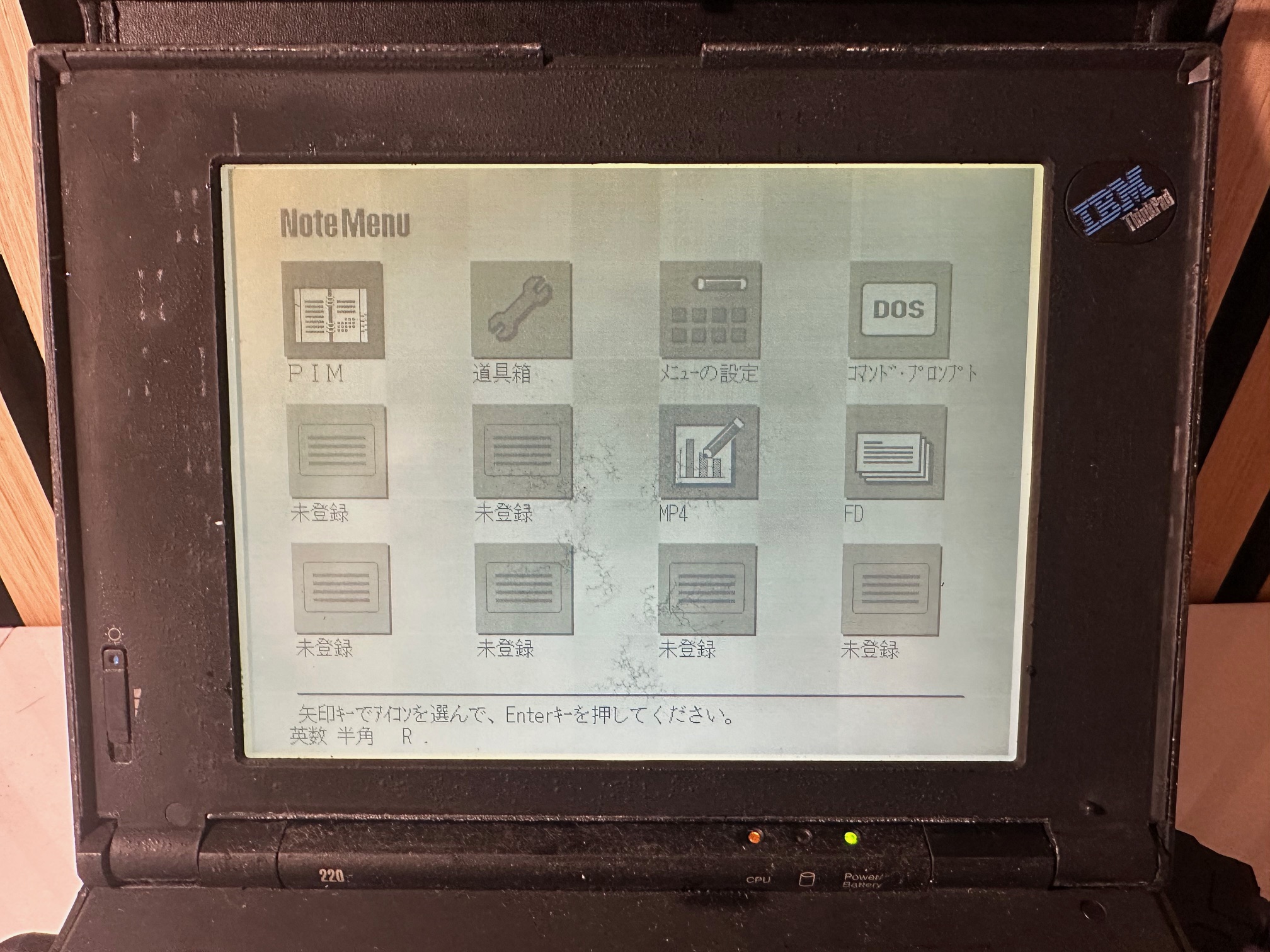

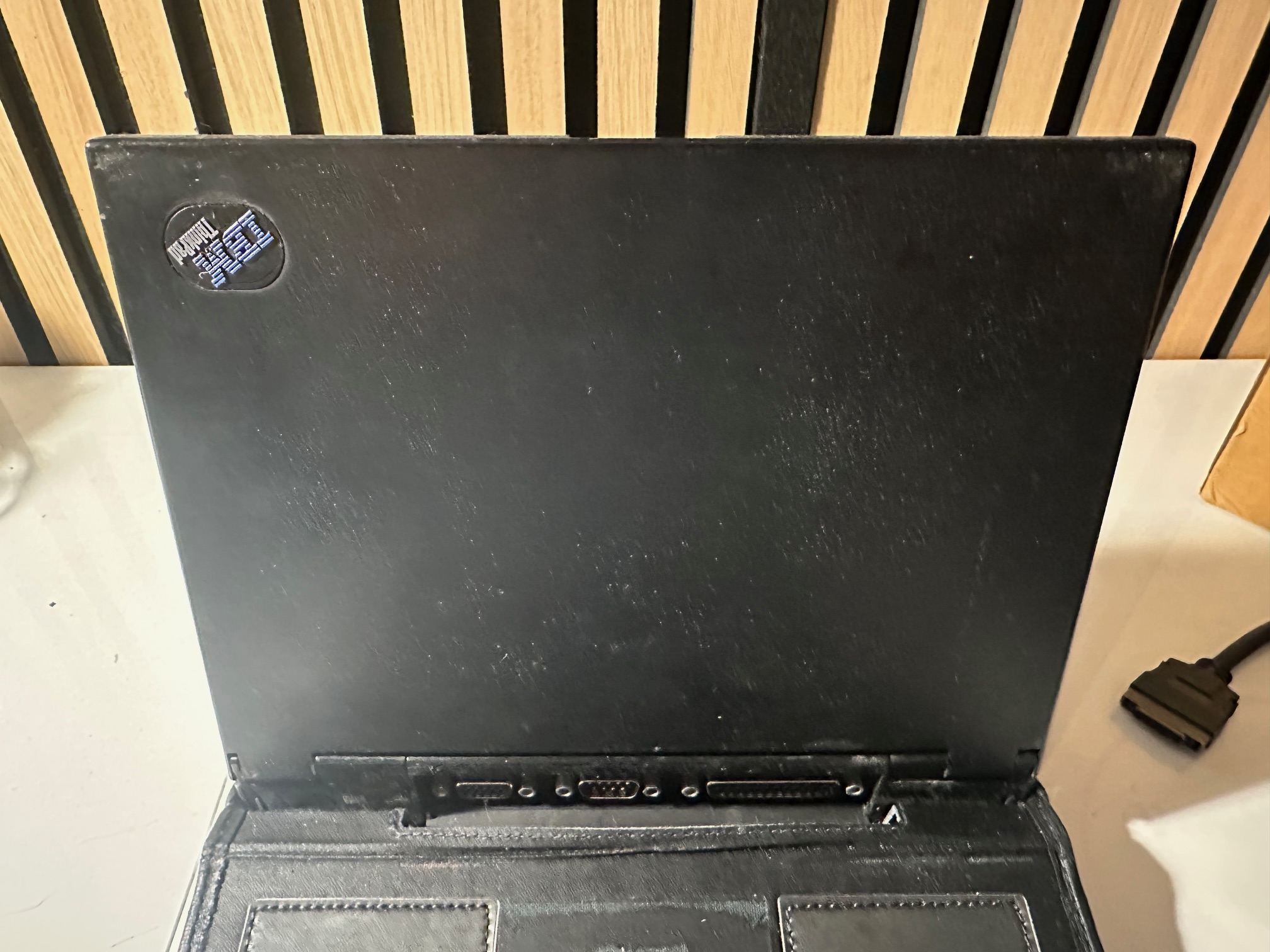

My machine was obtained and repaired in reasonable condition and boots to the original installation of it's Japan-centric menu. It comes inside it's own IBM leather wallet.

Model IBM Thinkpad 220 (Monolith Mk2)
Machine Types 2432-SJx
Release Timeframe Sold from May 1993 for around 1.5 years.
Preceded by Sold from May 1993 until August 1994
Superceded by PC110
Motherboard Specs 230Cs
Display Specs

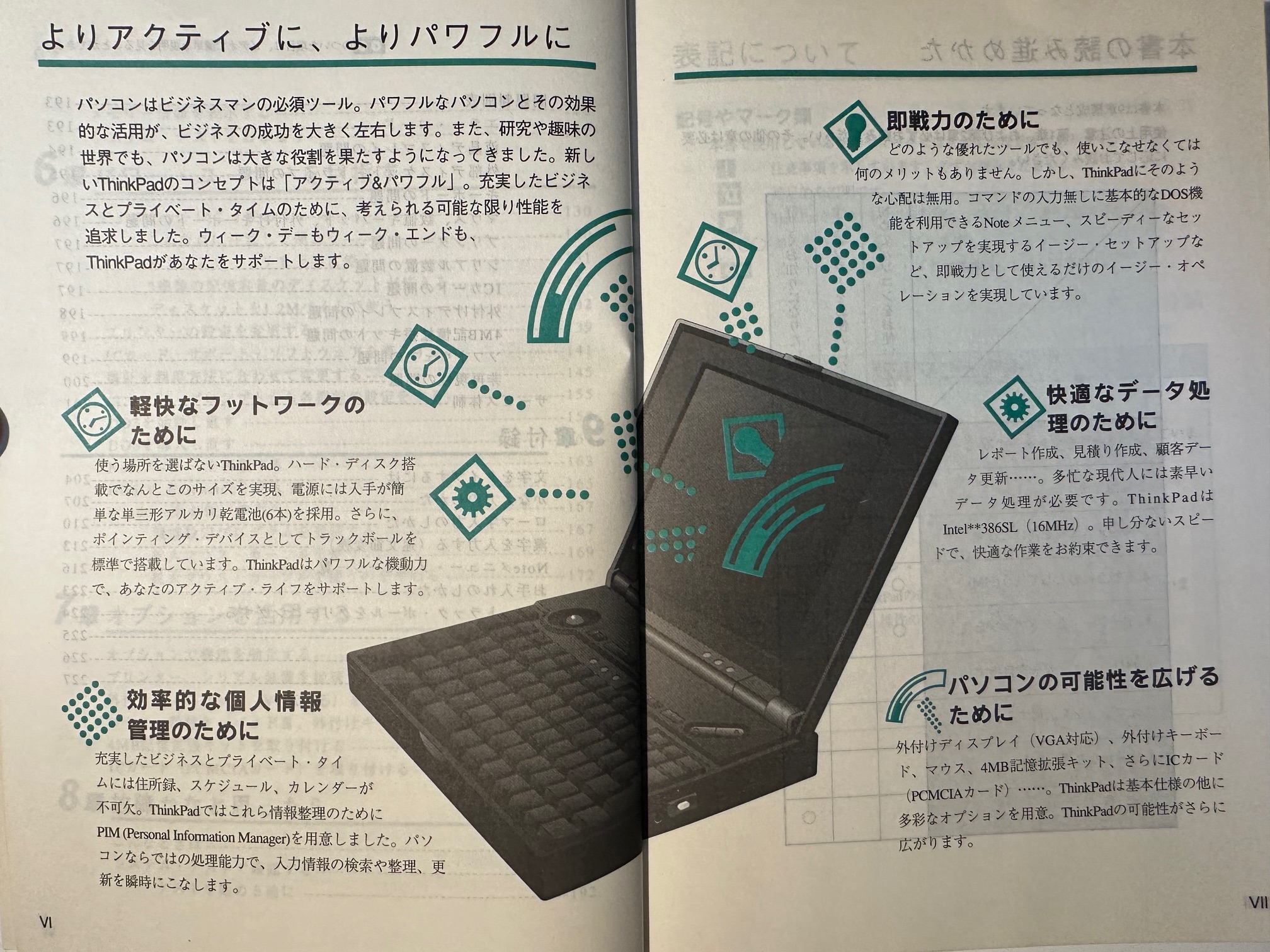

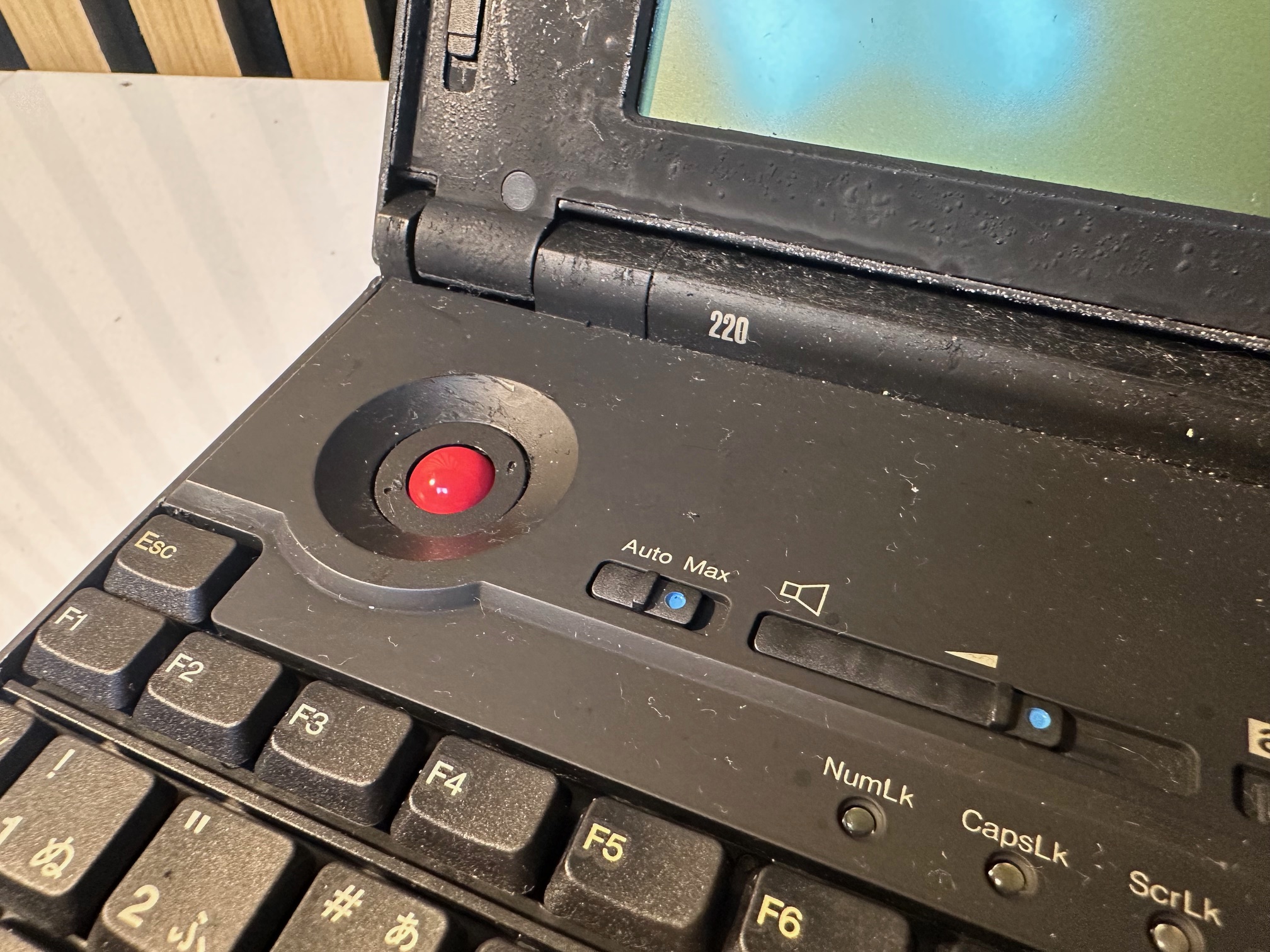

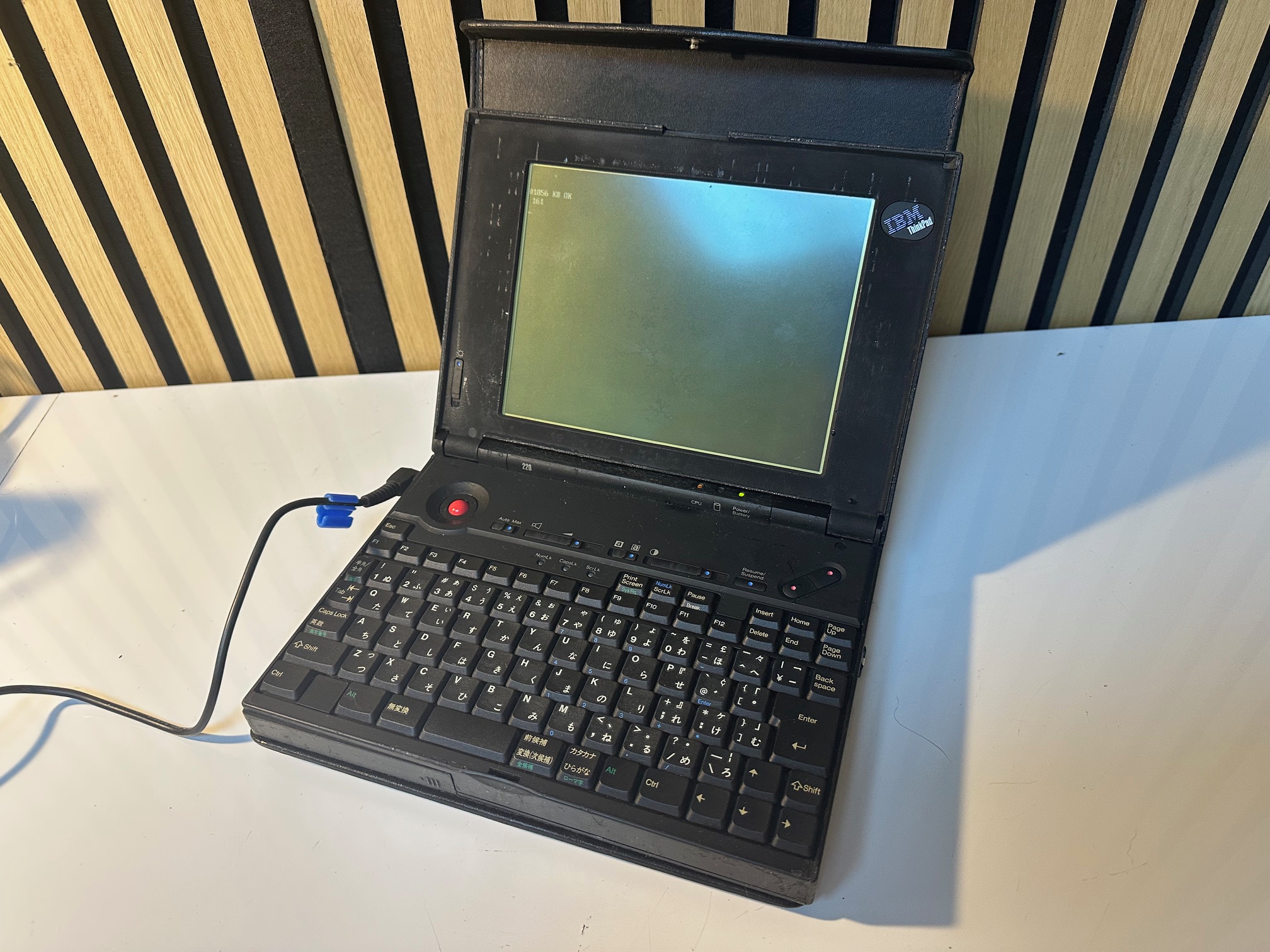

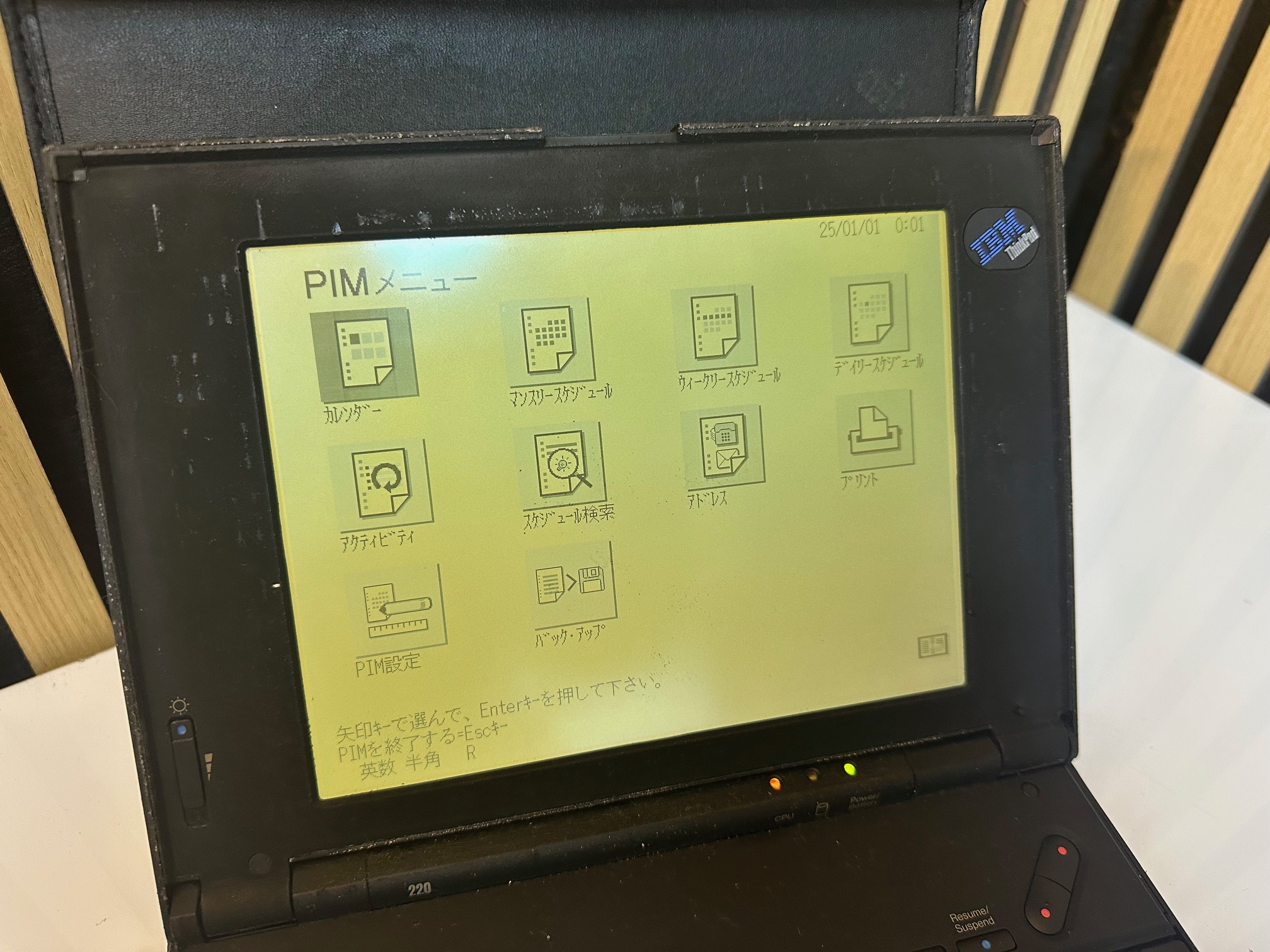

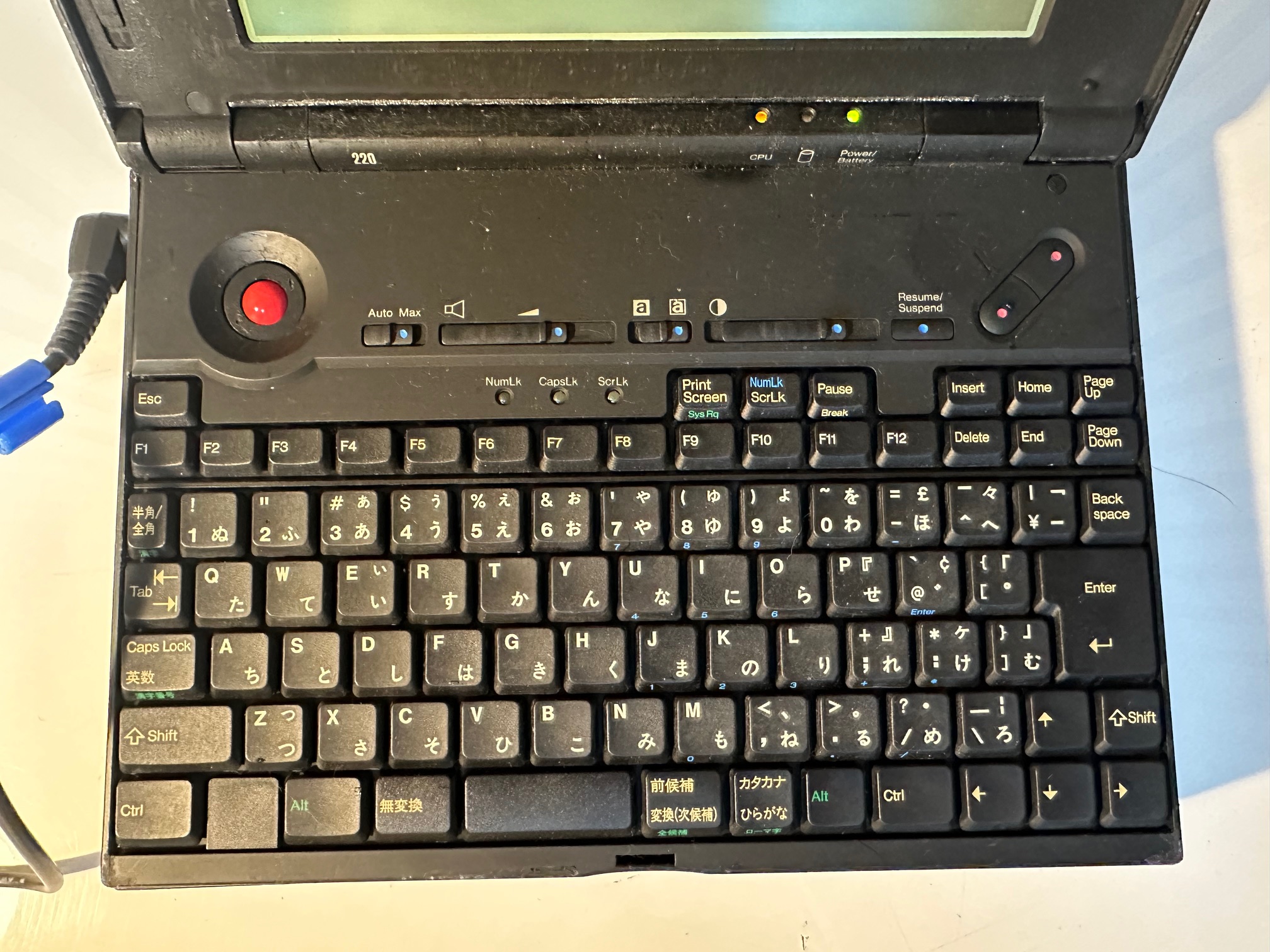

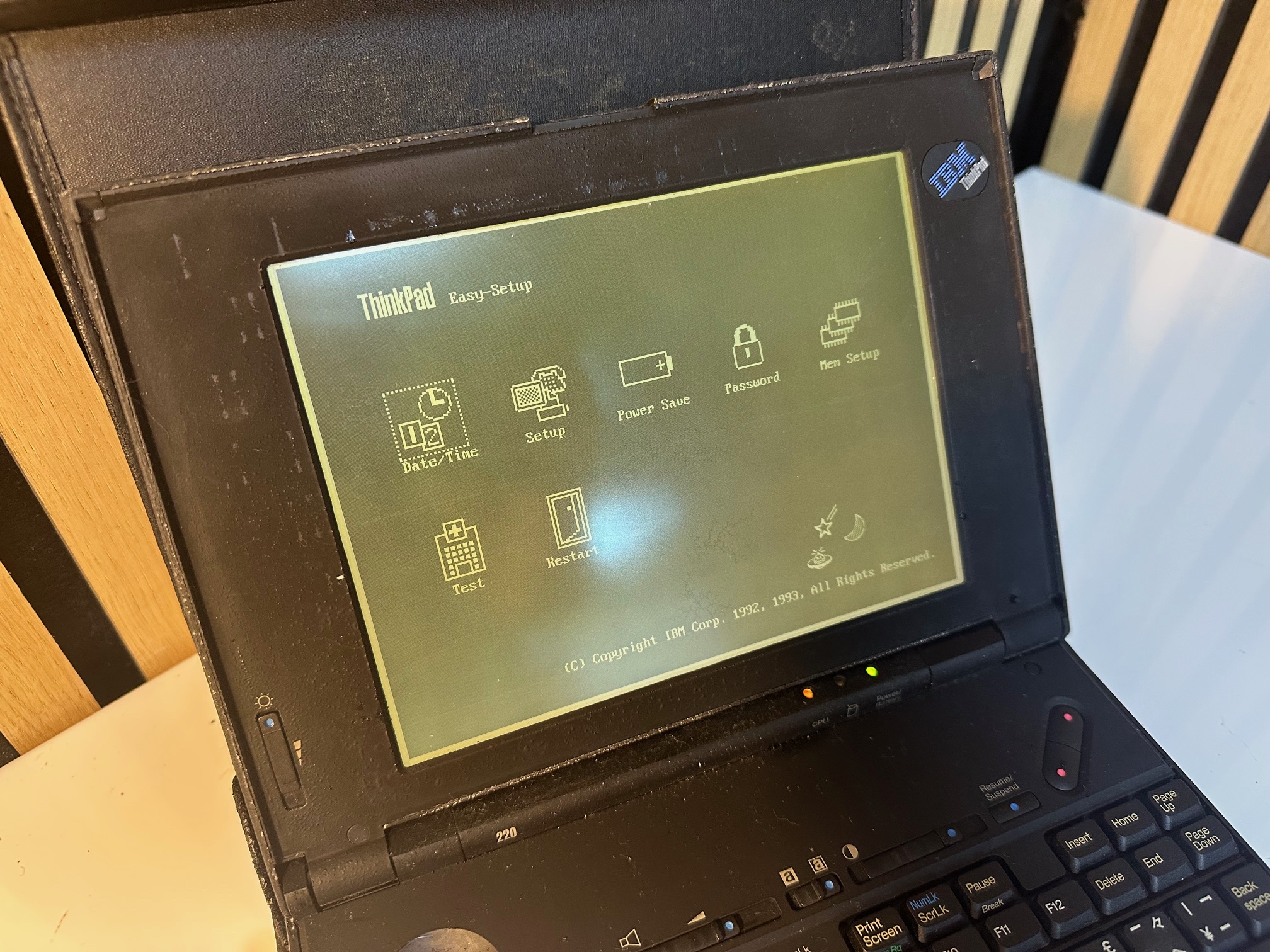

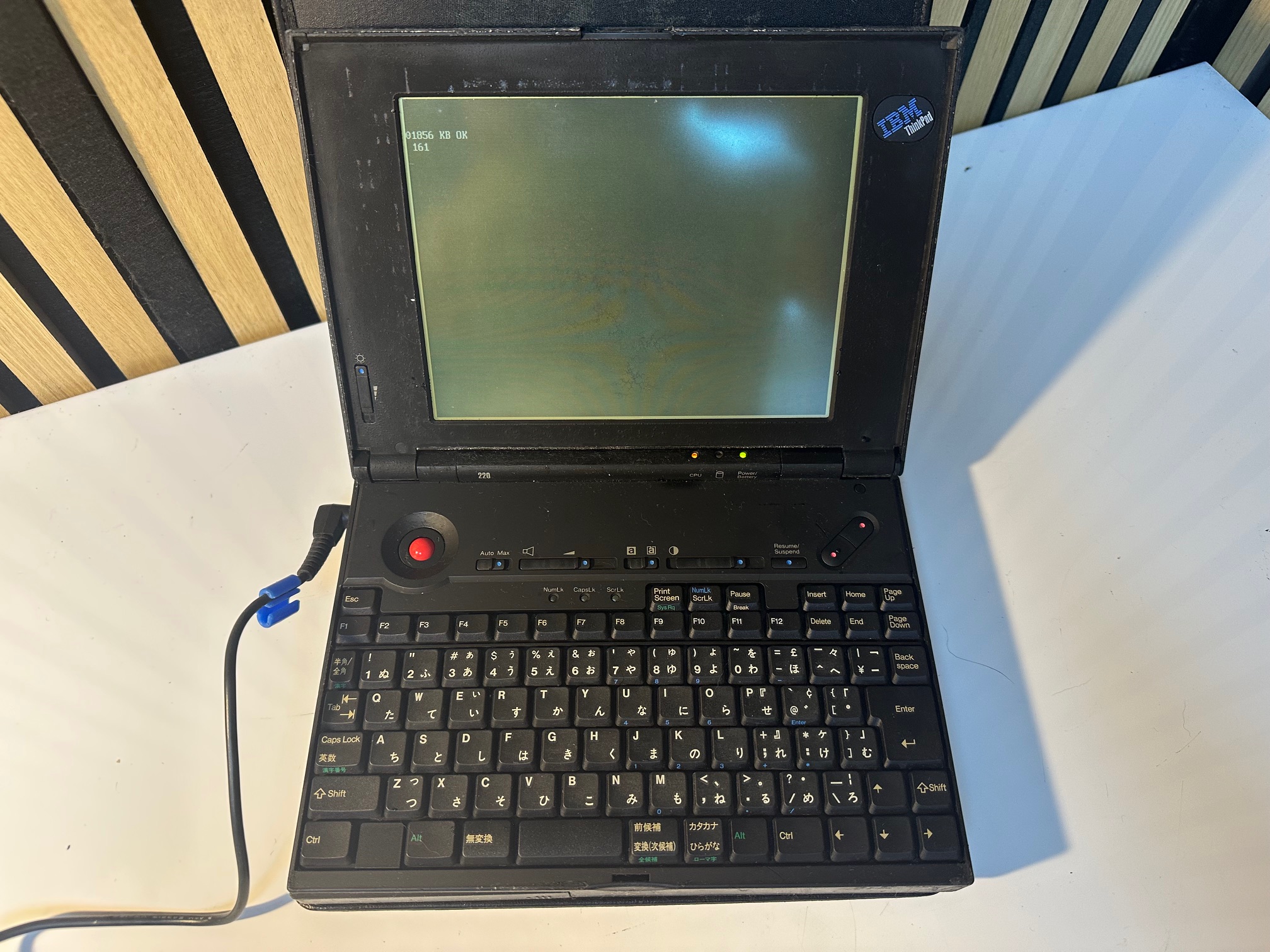

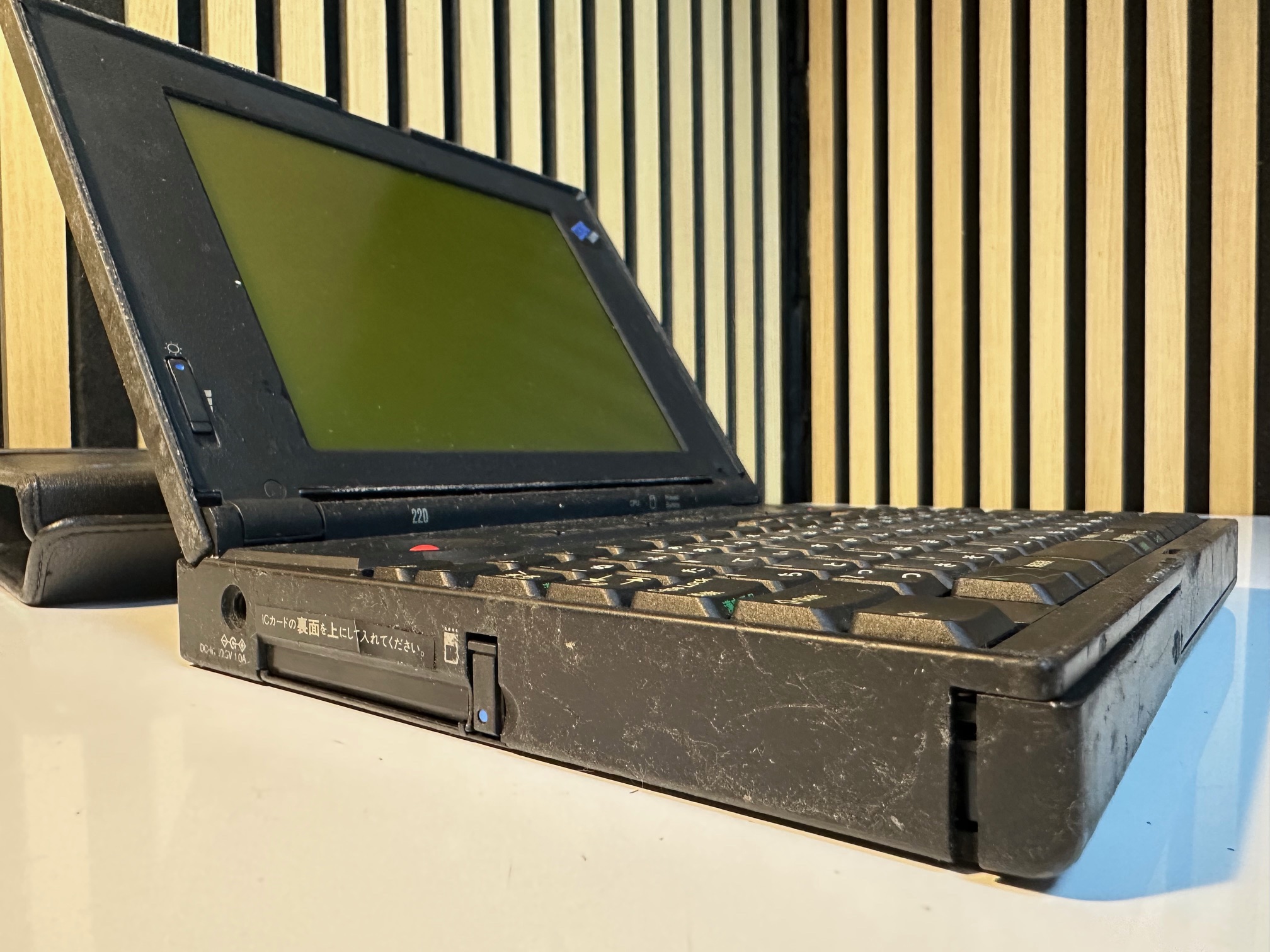

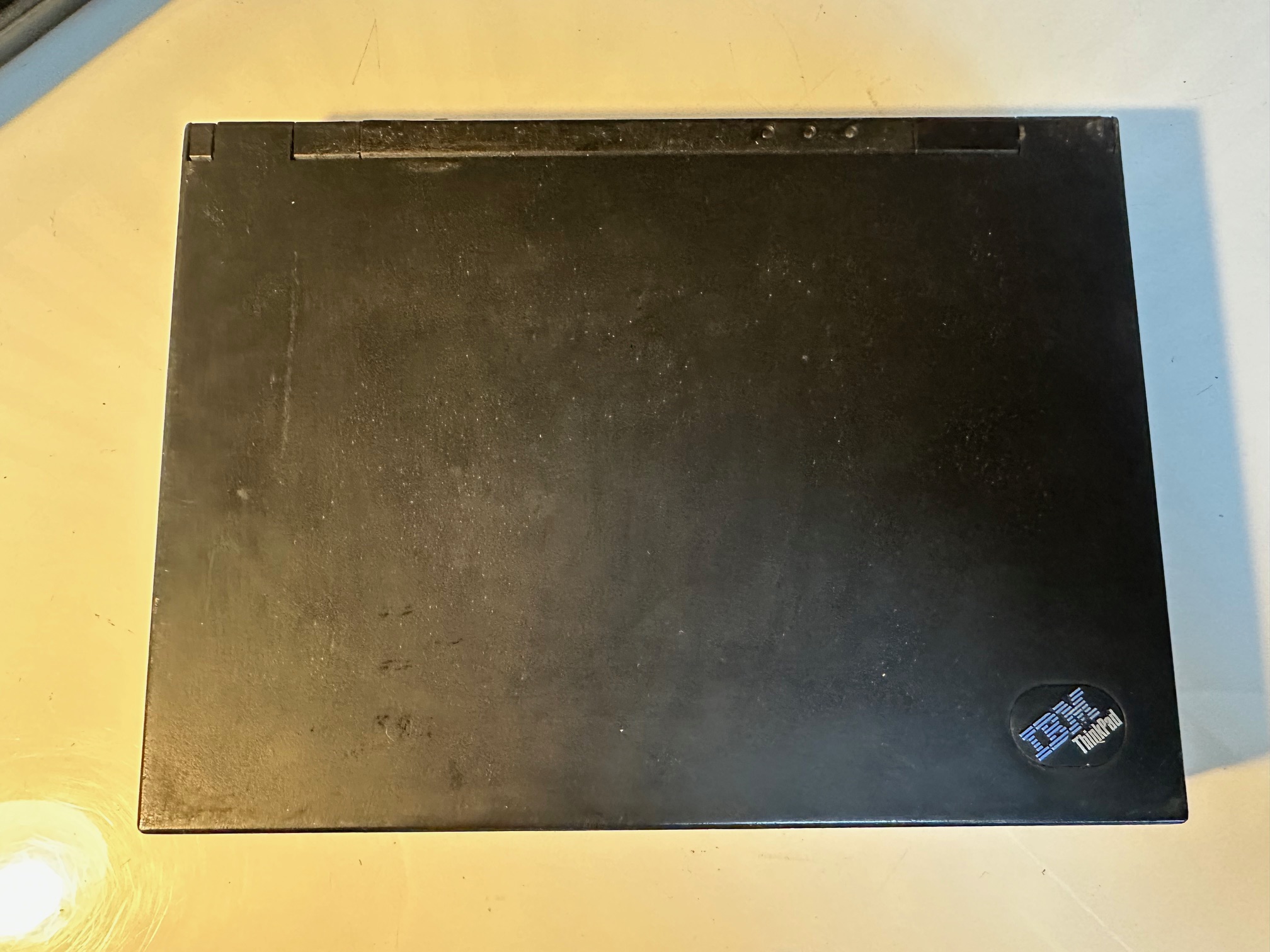

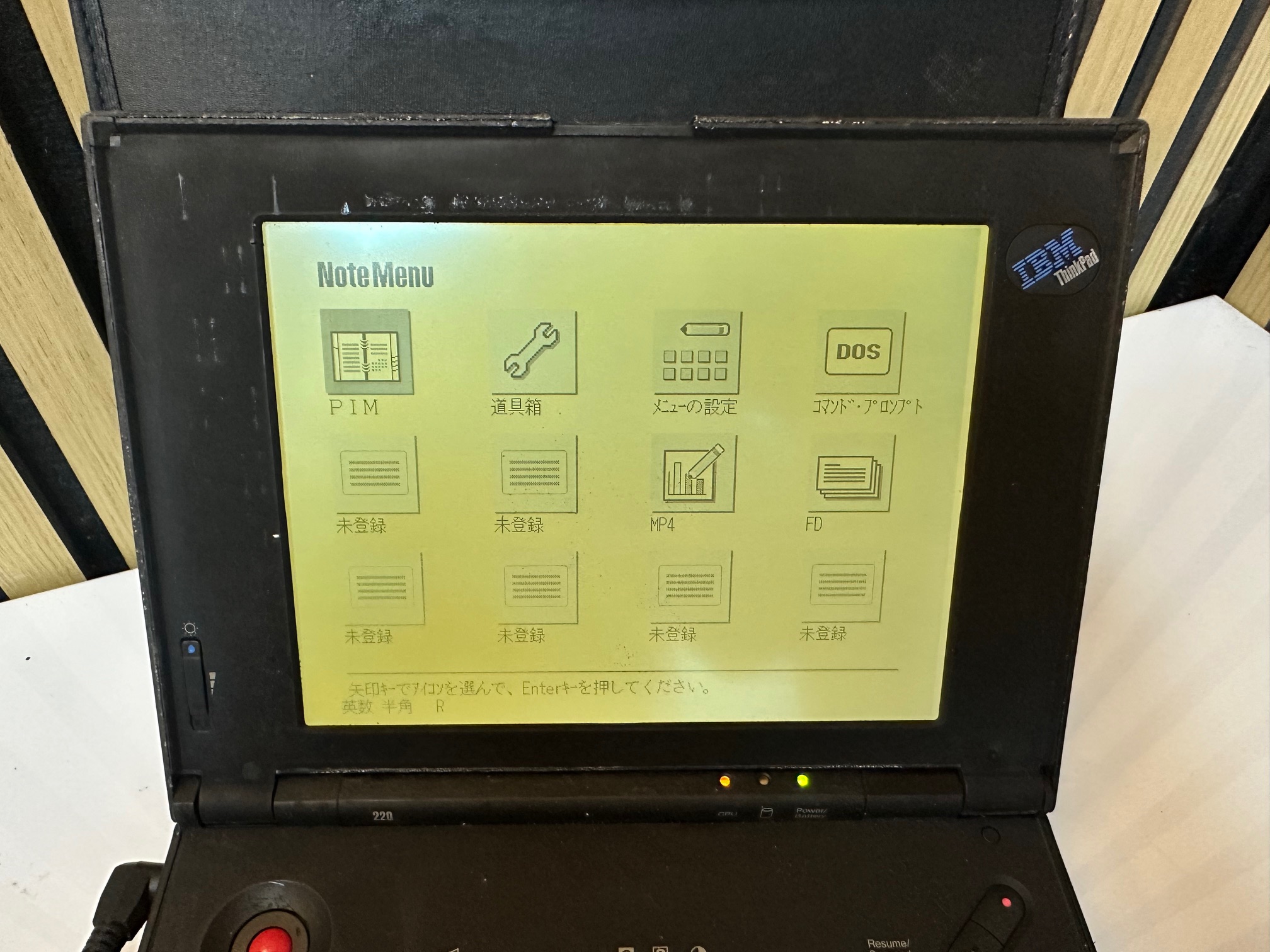

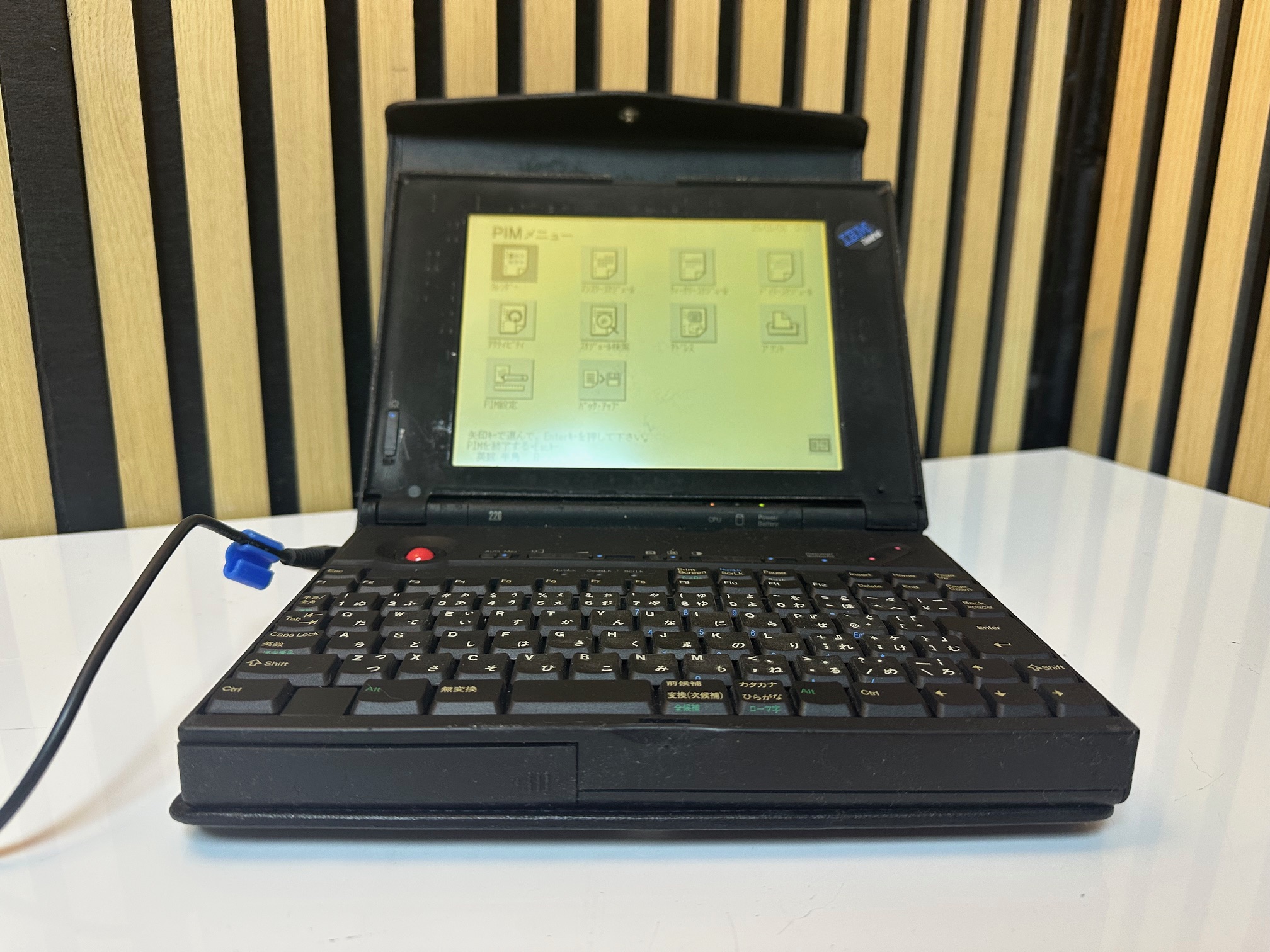

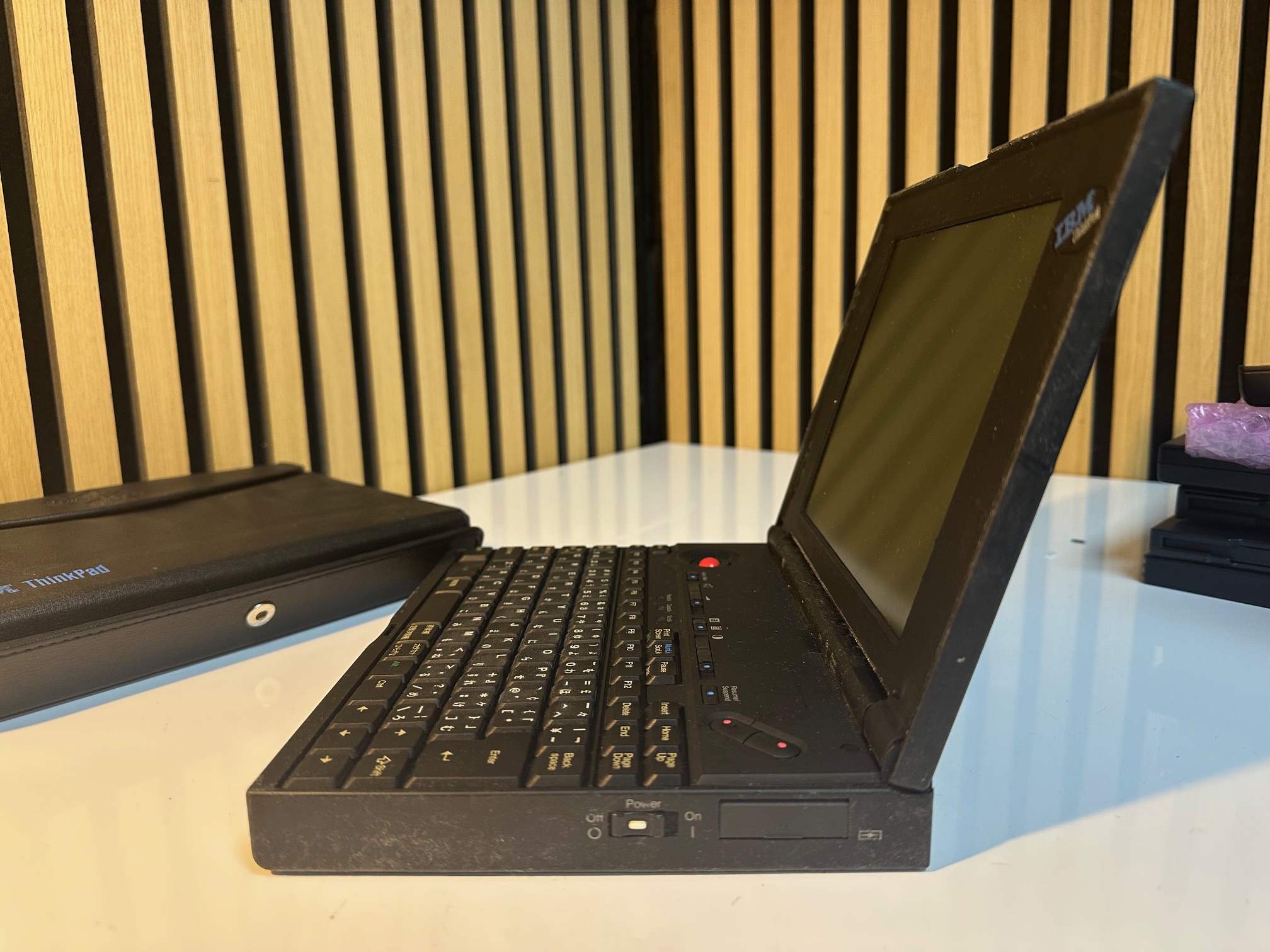

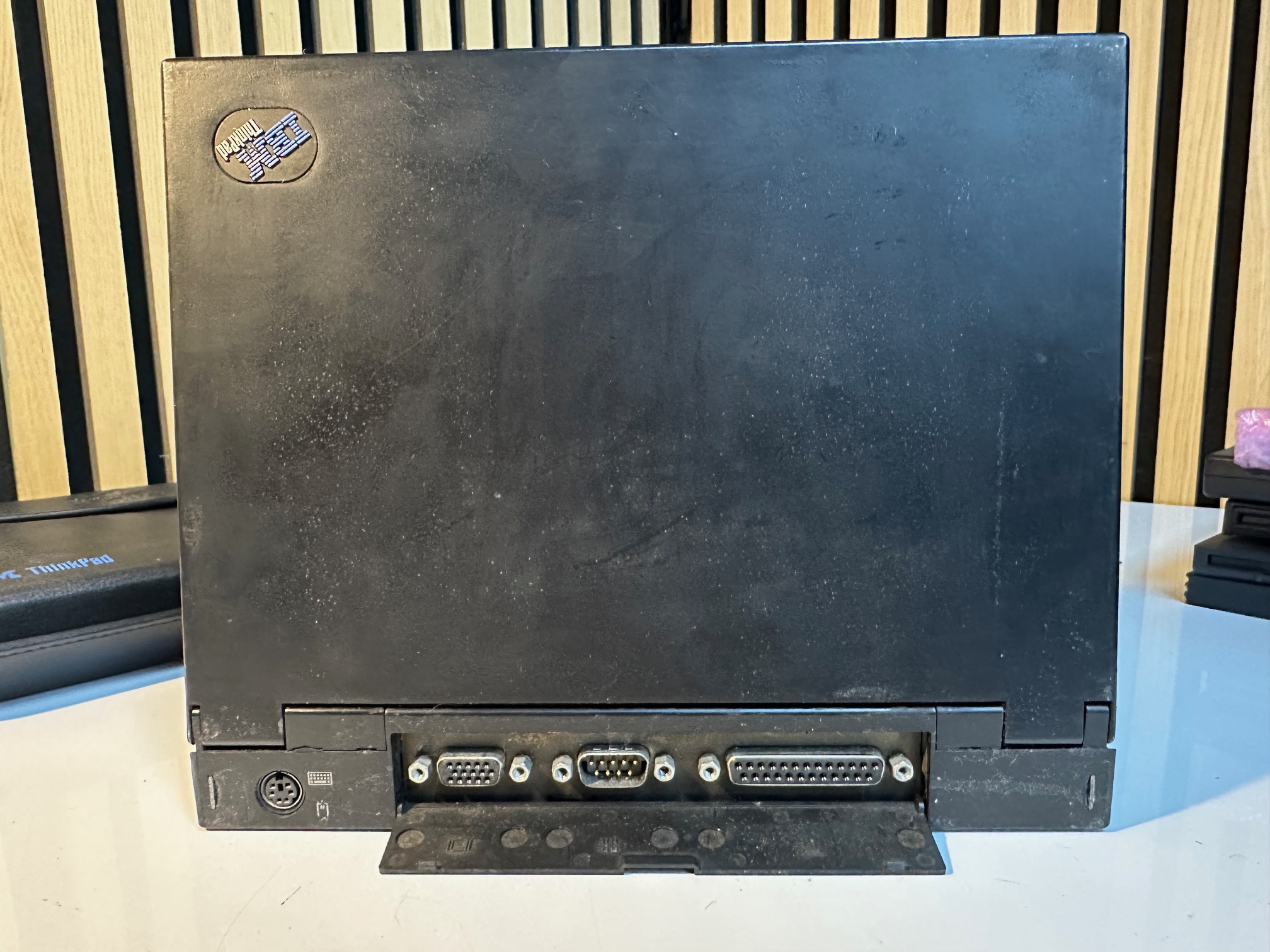

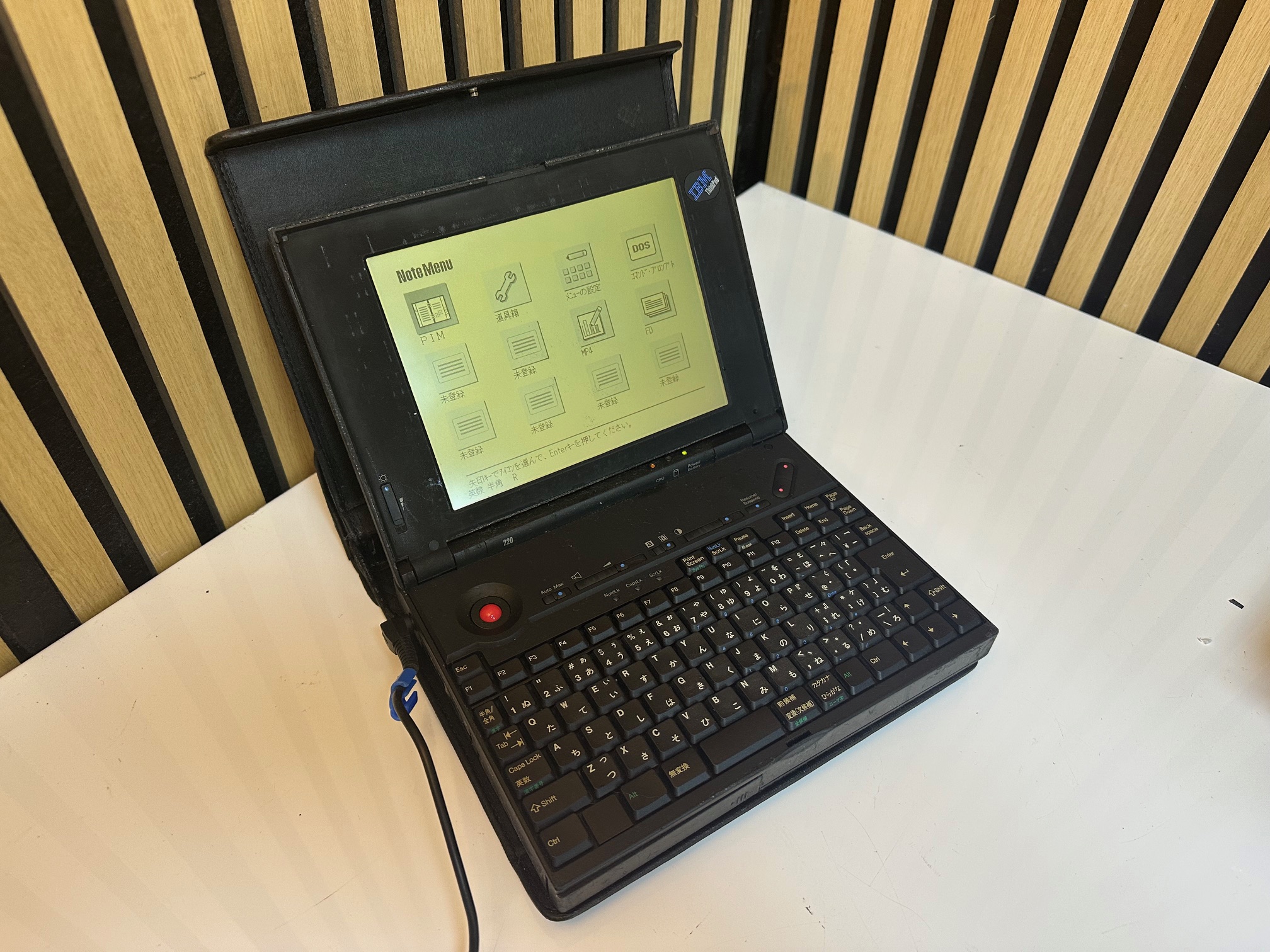

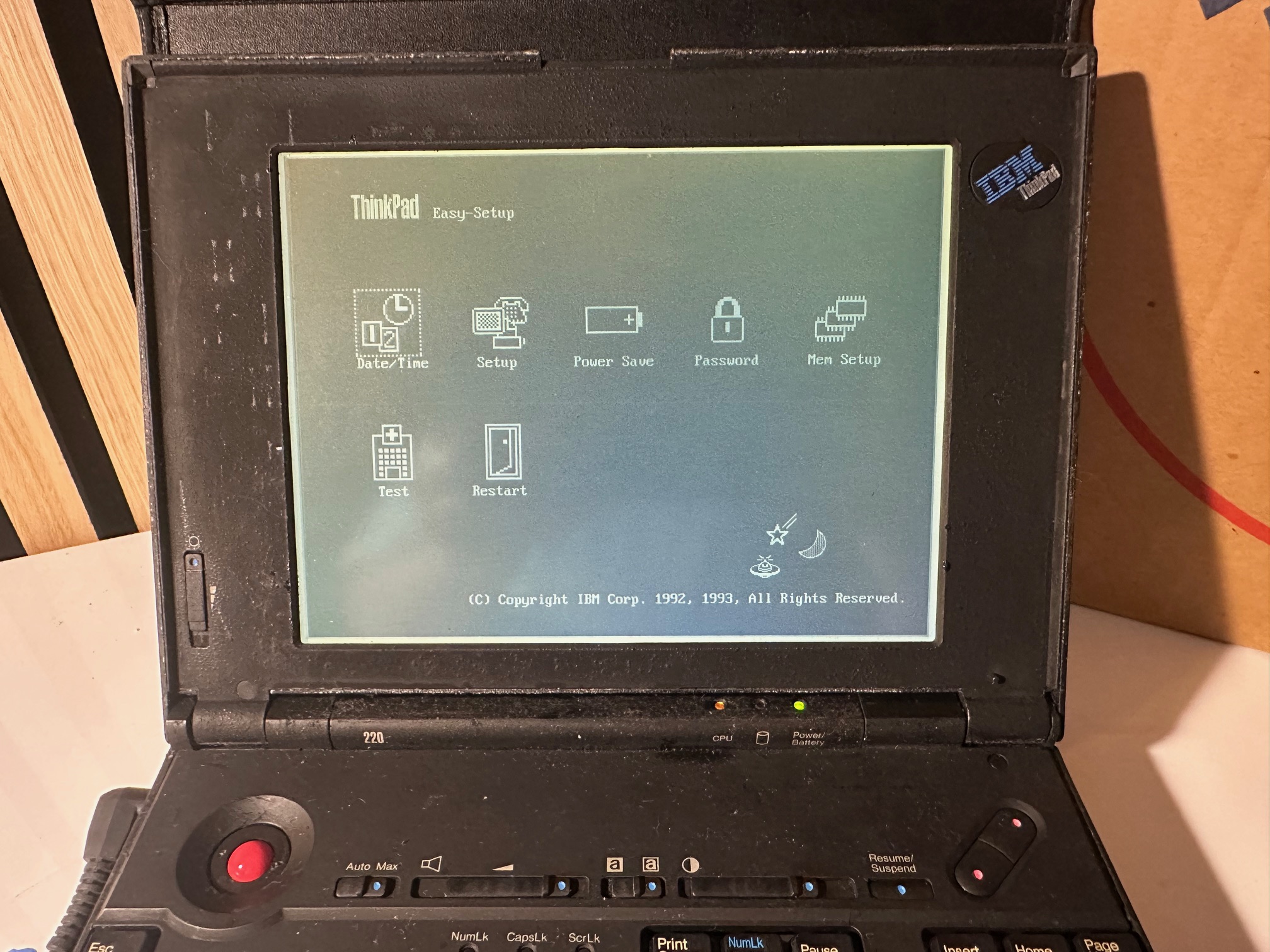

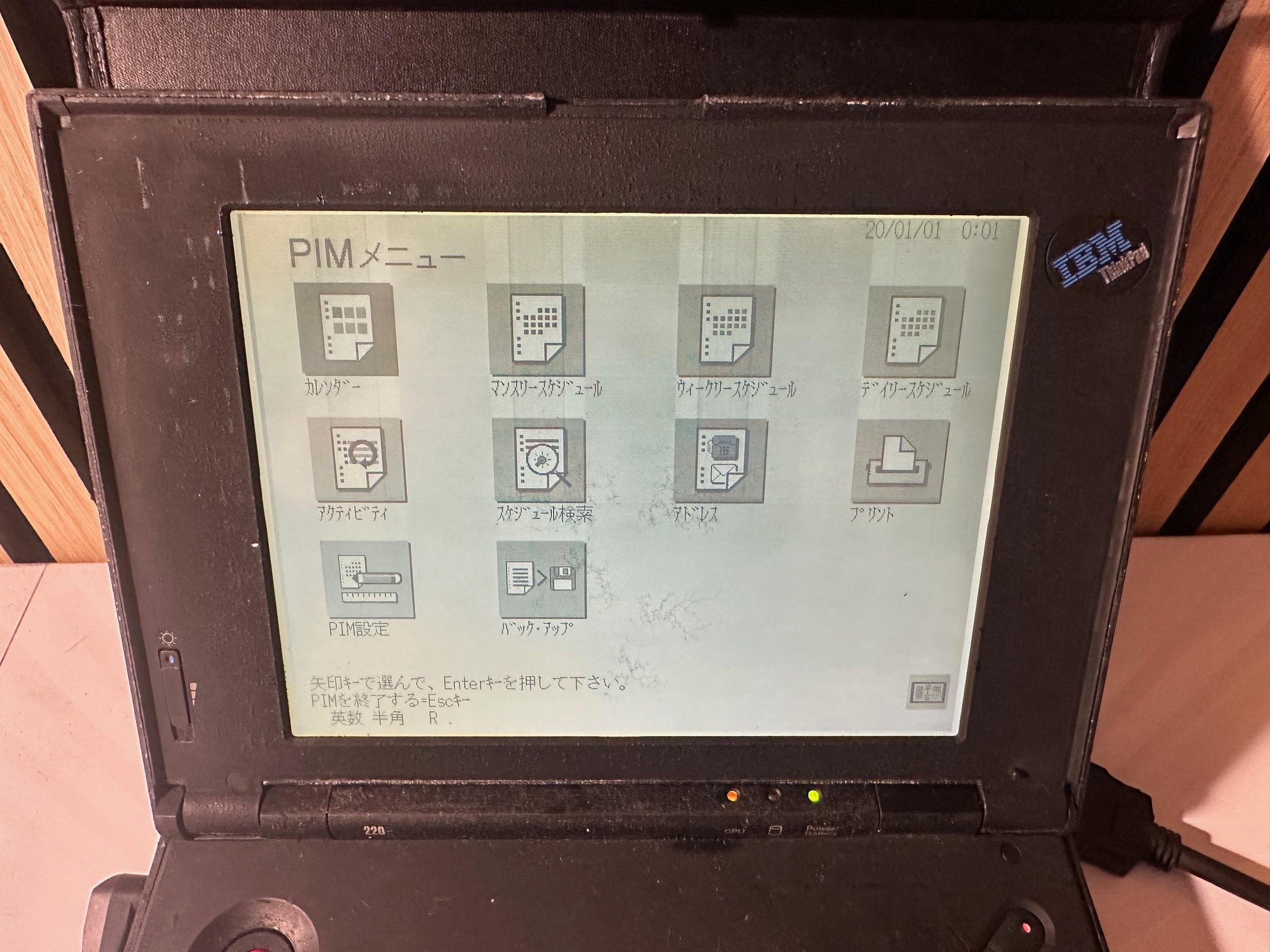

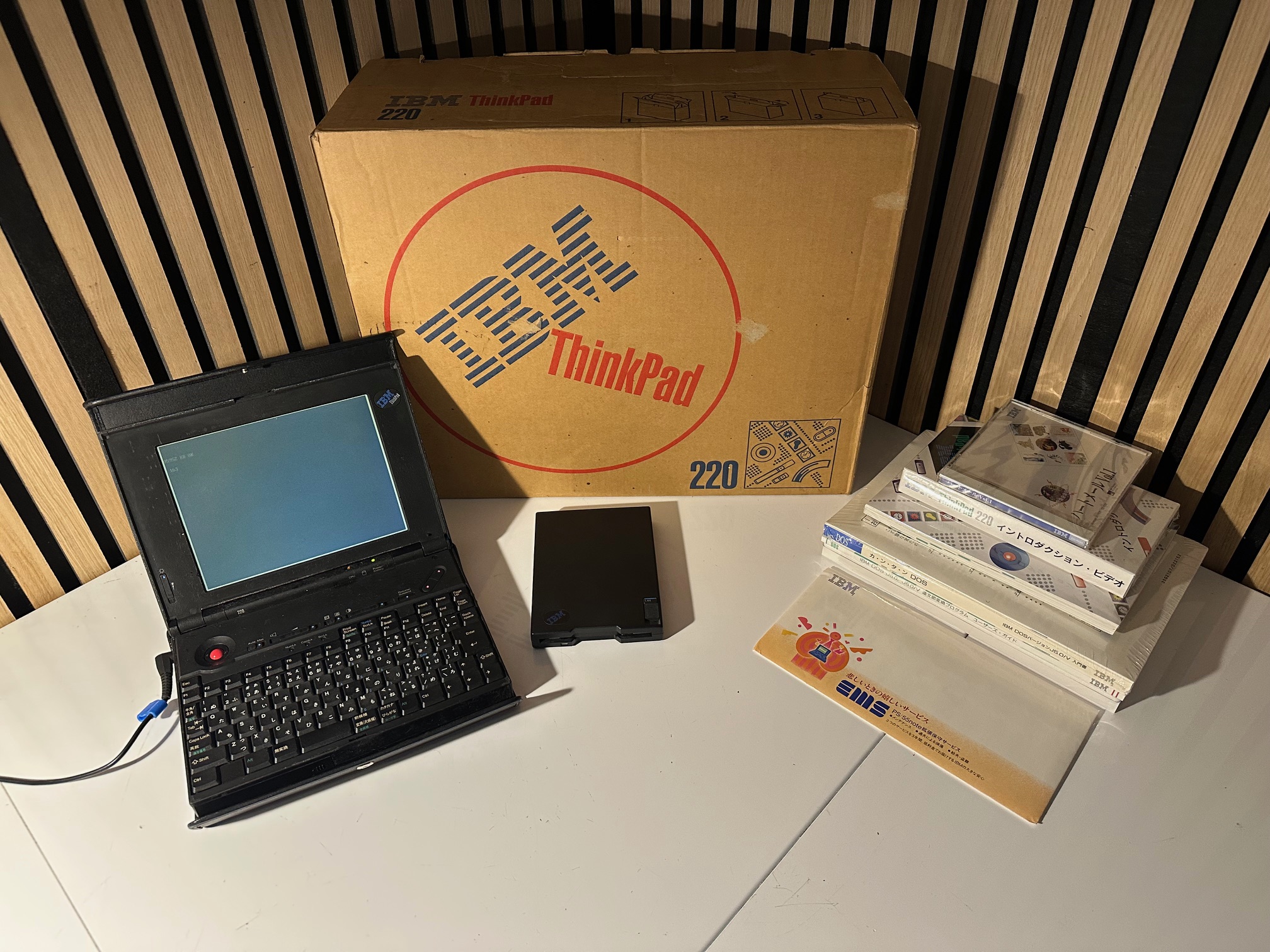

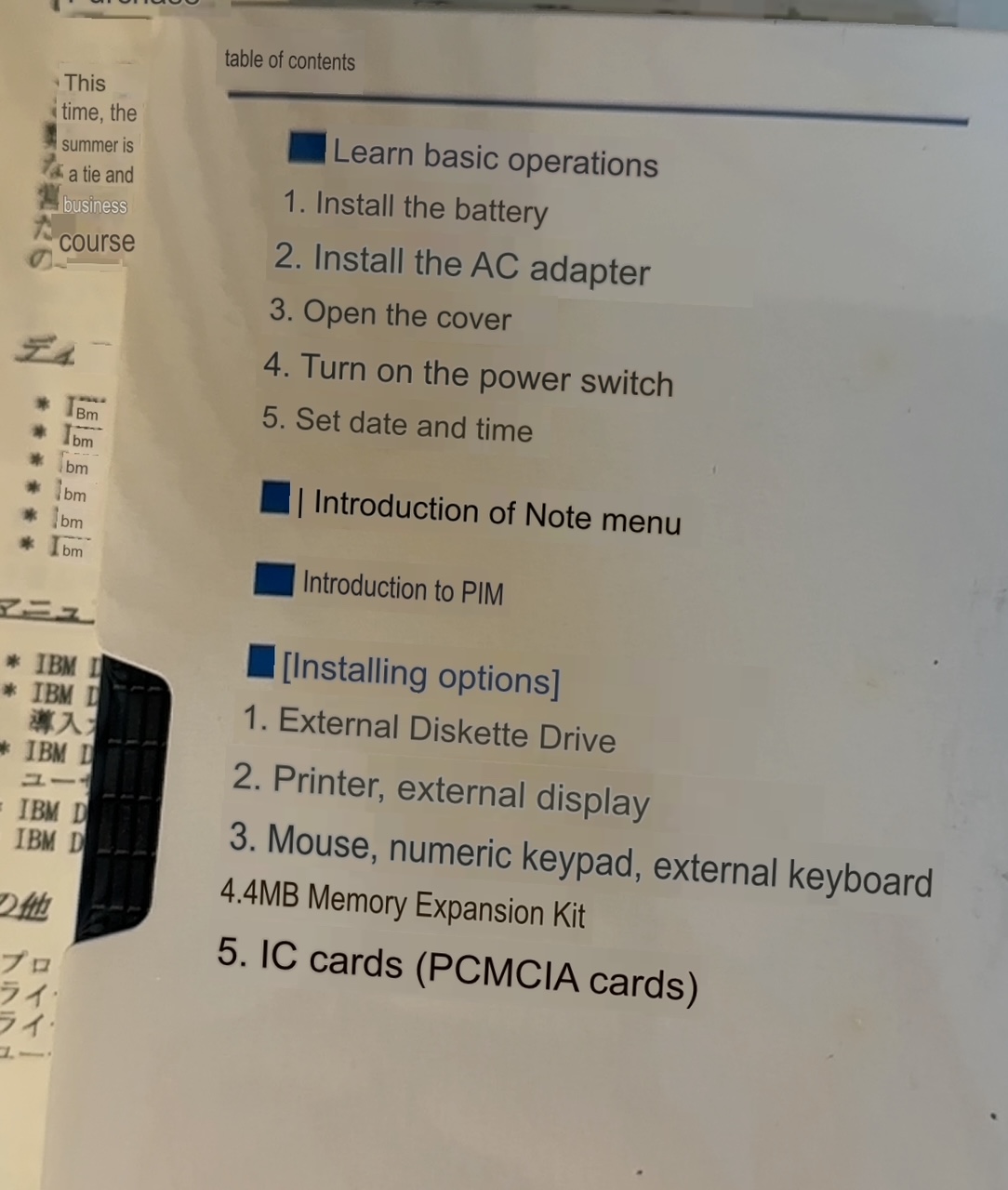

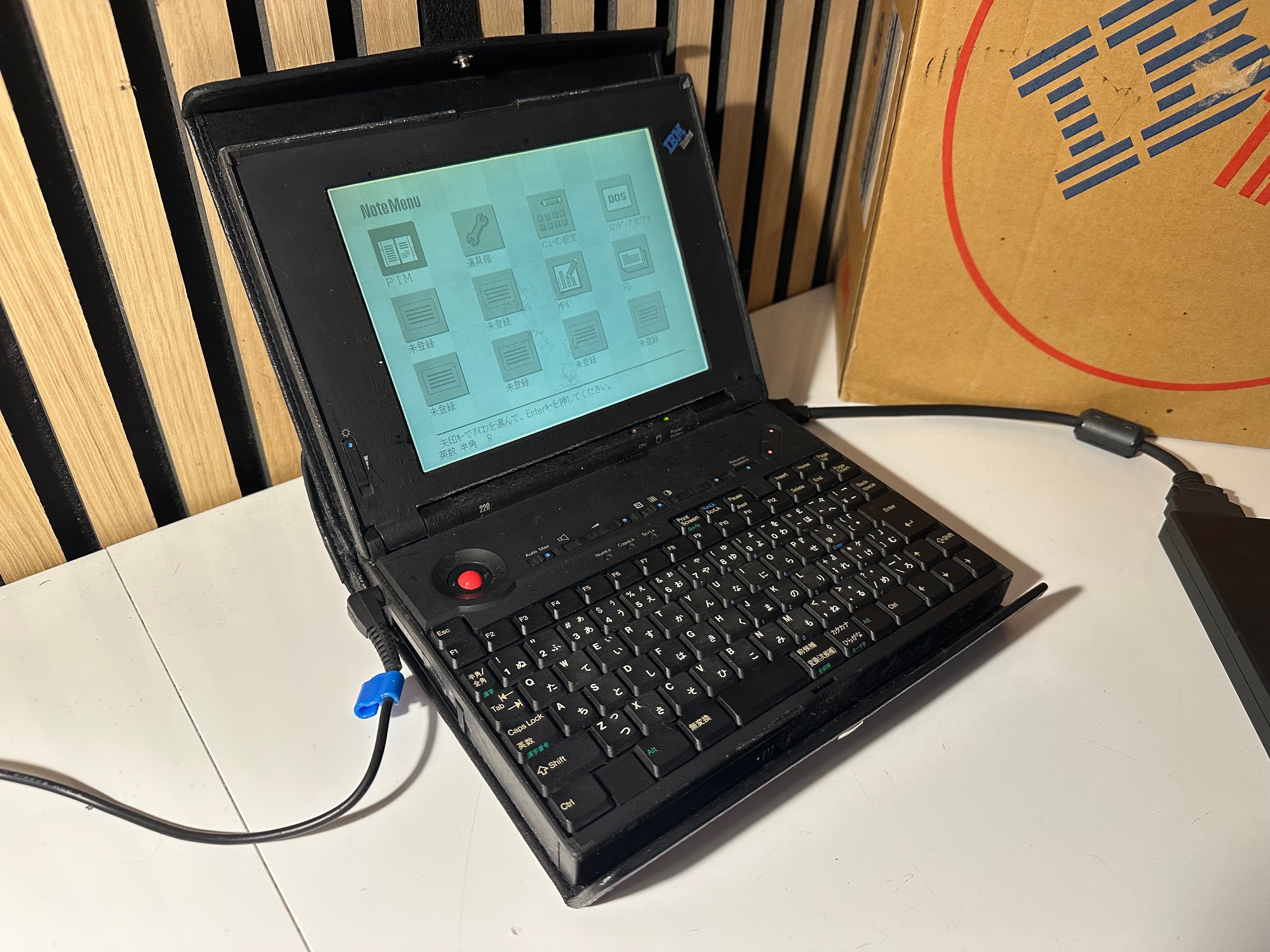

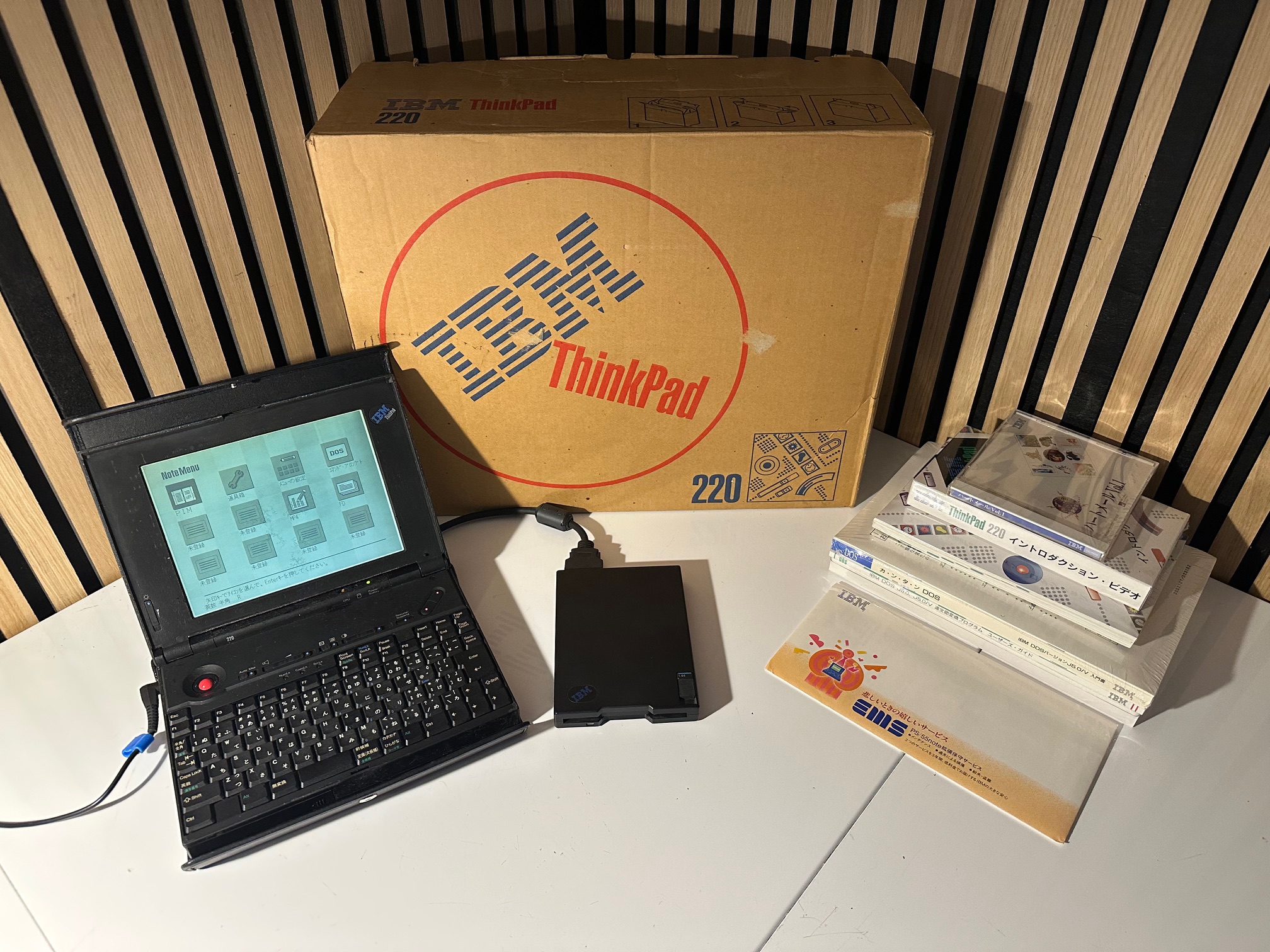

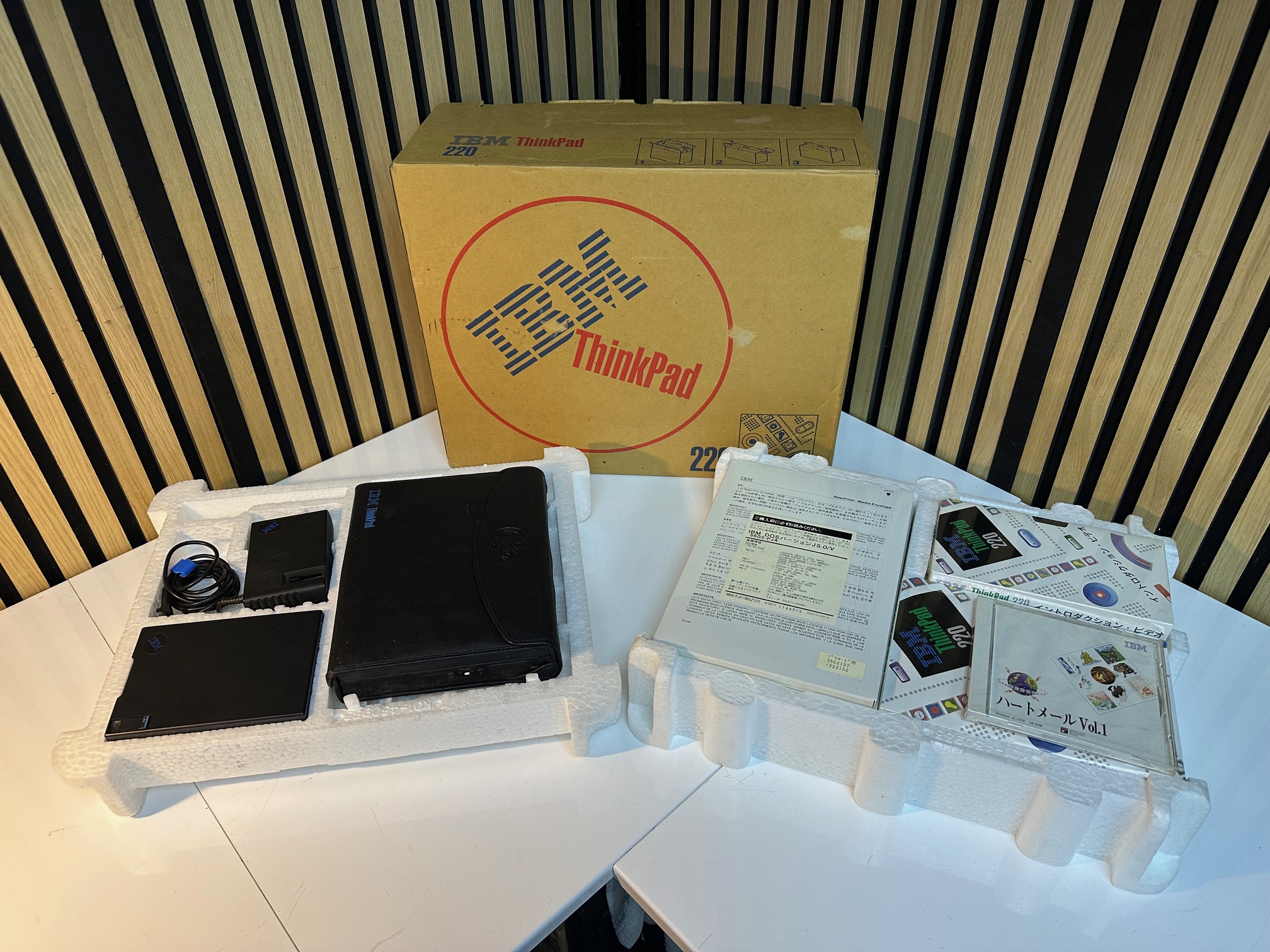

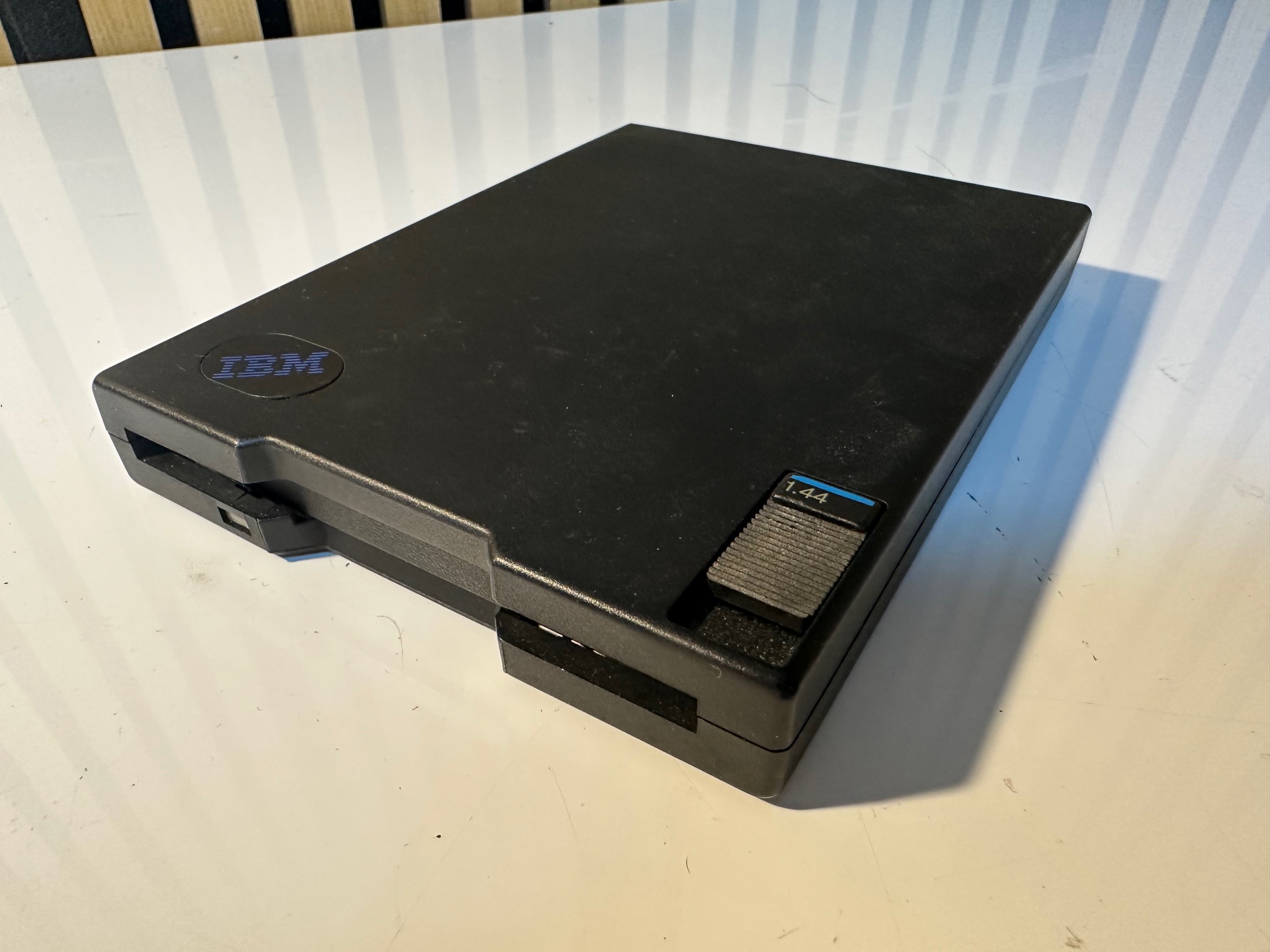

Here are some pictures of my 220s The first one is about as practically complete as you could get with a complete sealed set of documents, manuals, disks and a 220 VHS videocassette. I've restored this to remove the hibernation battery, replace the CR2447, recapped the motherboard, upgraded the RAM and the hard drive boots with the factory PIM software which is a Icon-based manager (a little like IOS on an iPhone).

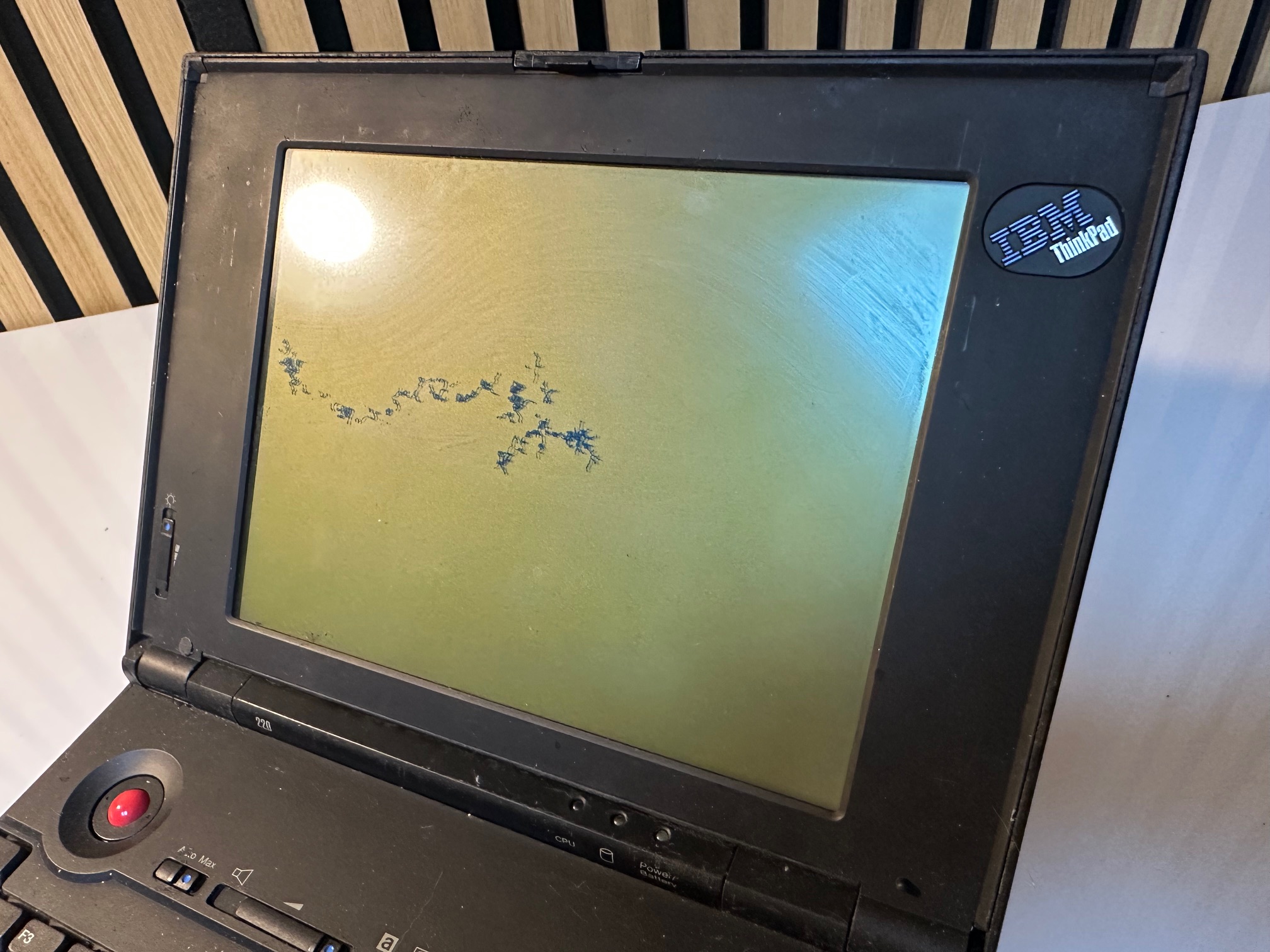

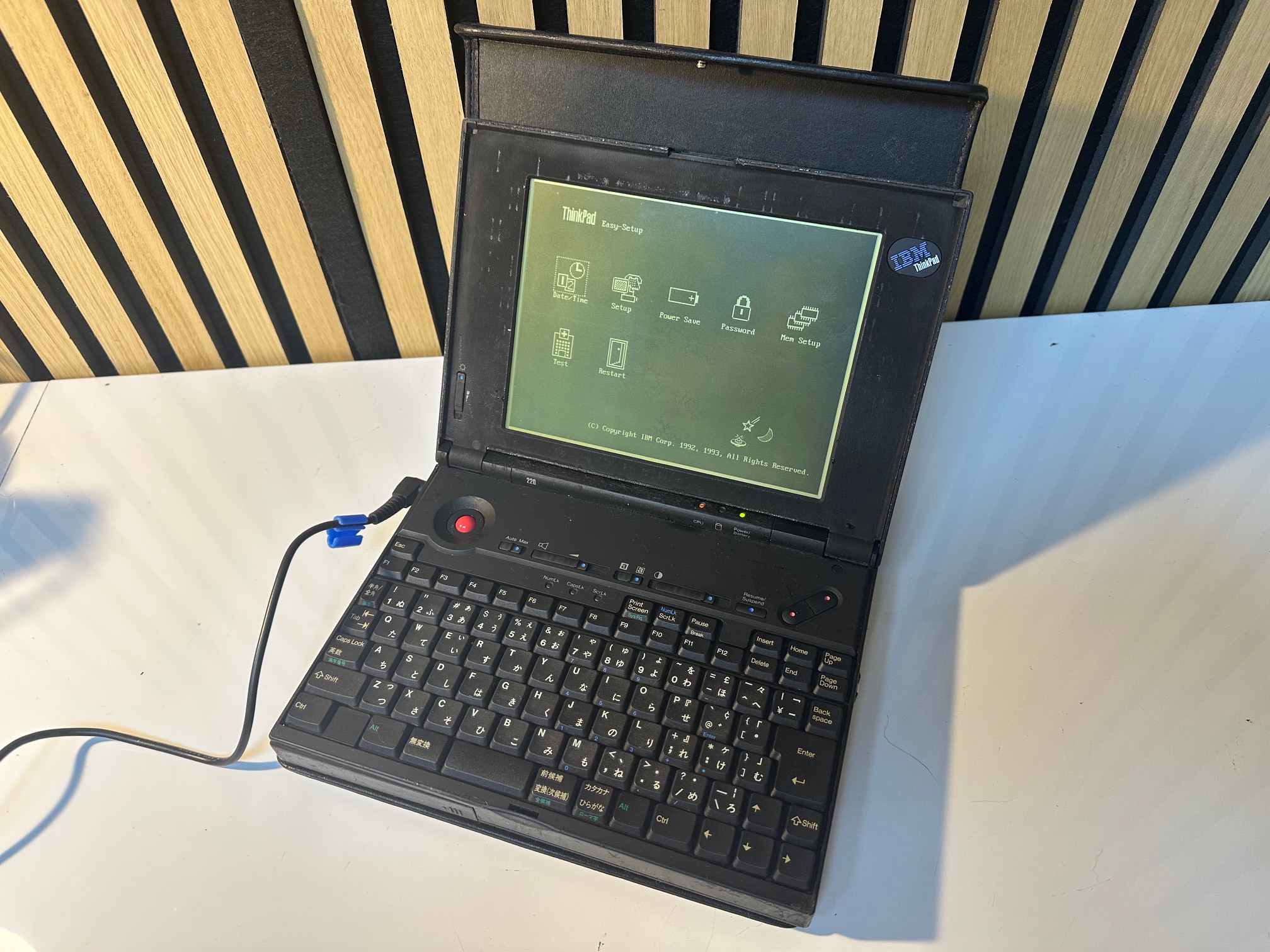

The second machine is also preserved from damage and recapped but the screen does not work. I have two further machines with missing screens (too damaged to keep) and some spares such as a good working motherboard.

It's really hard to keep good, working 220 machines as they're so fraught with issues - particularly the screen.

So I tried to take a 220 apart and it's possibly one of the worst vintage thinkpads to disassemble. The designers were obviously working with new display technology as well as new materials, and neither have aged well

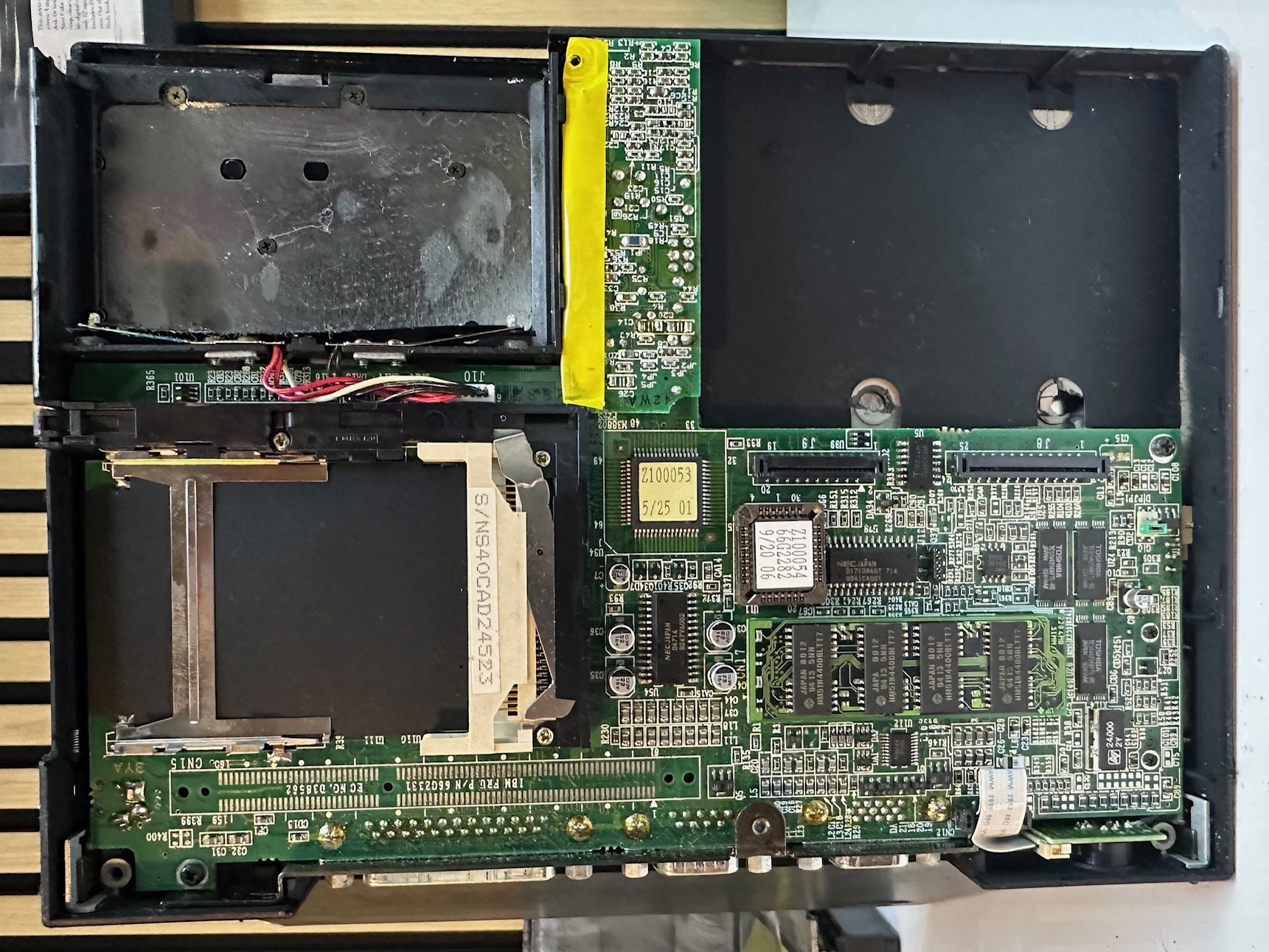

The base is held on with a few screws with a hidden pair in the back corners, under the hinges. This will enable you to remove the base, revealing the motherboard:

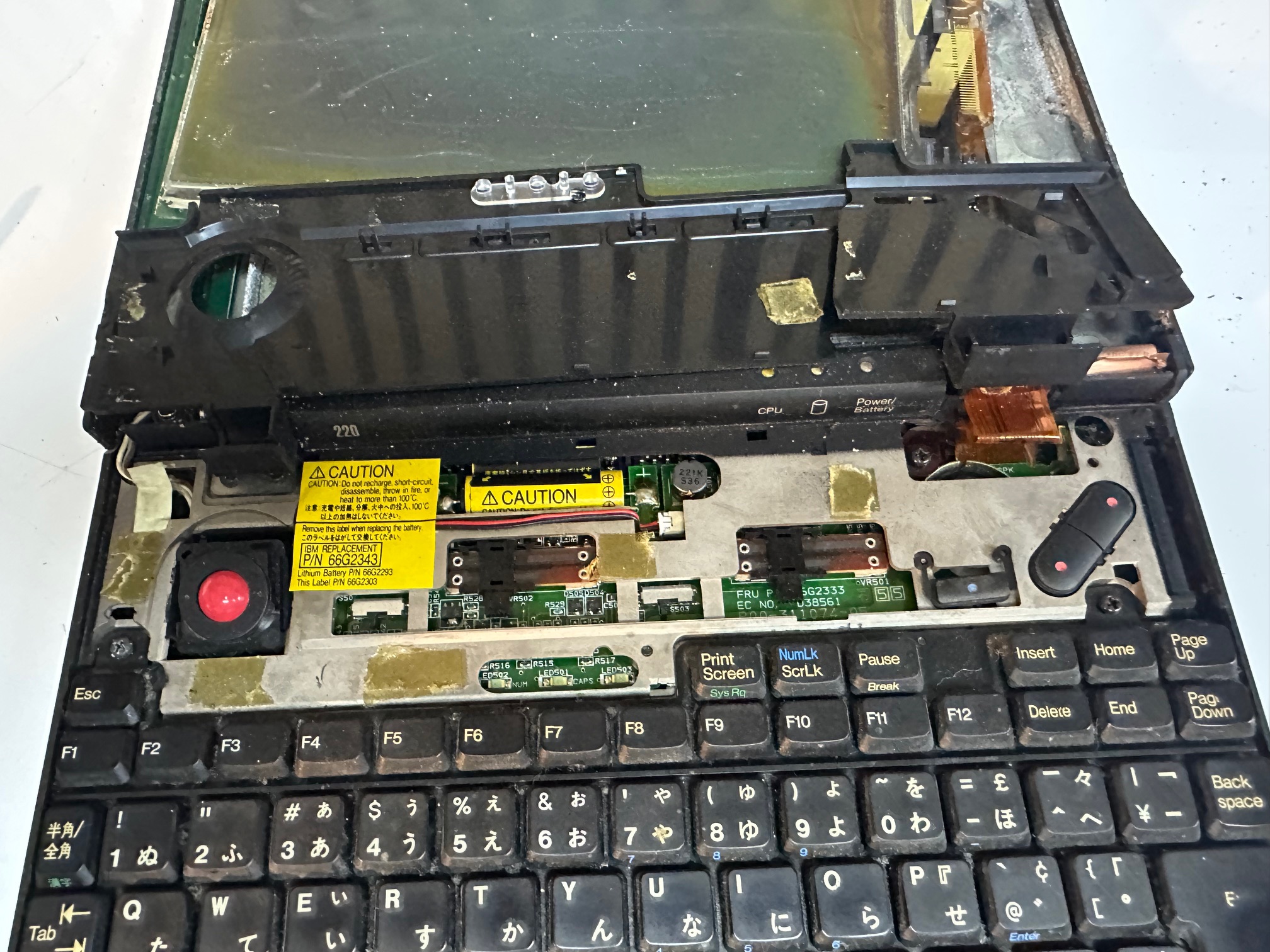

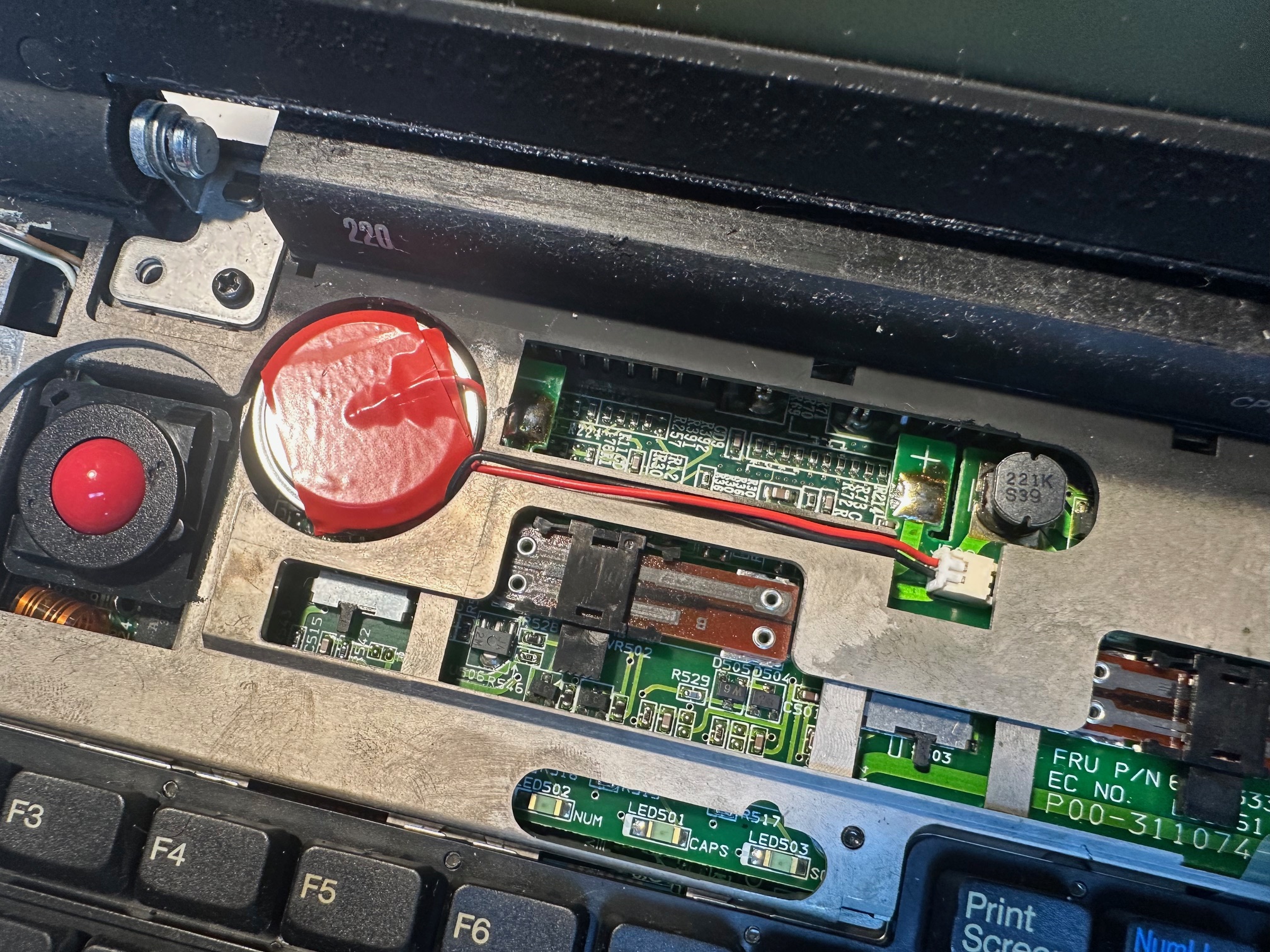

At the same time, the top bezel which is above the keyboard is clipped in by friction around the edges and some sticky tape in the middle. So warming it up might help a bit, because it tends to be very weak plastic now that just snaps. Here is underneath:

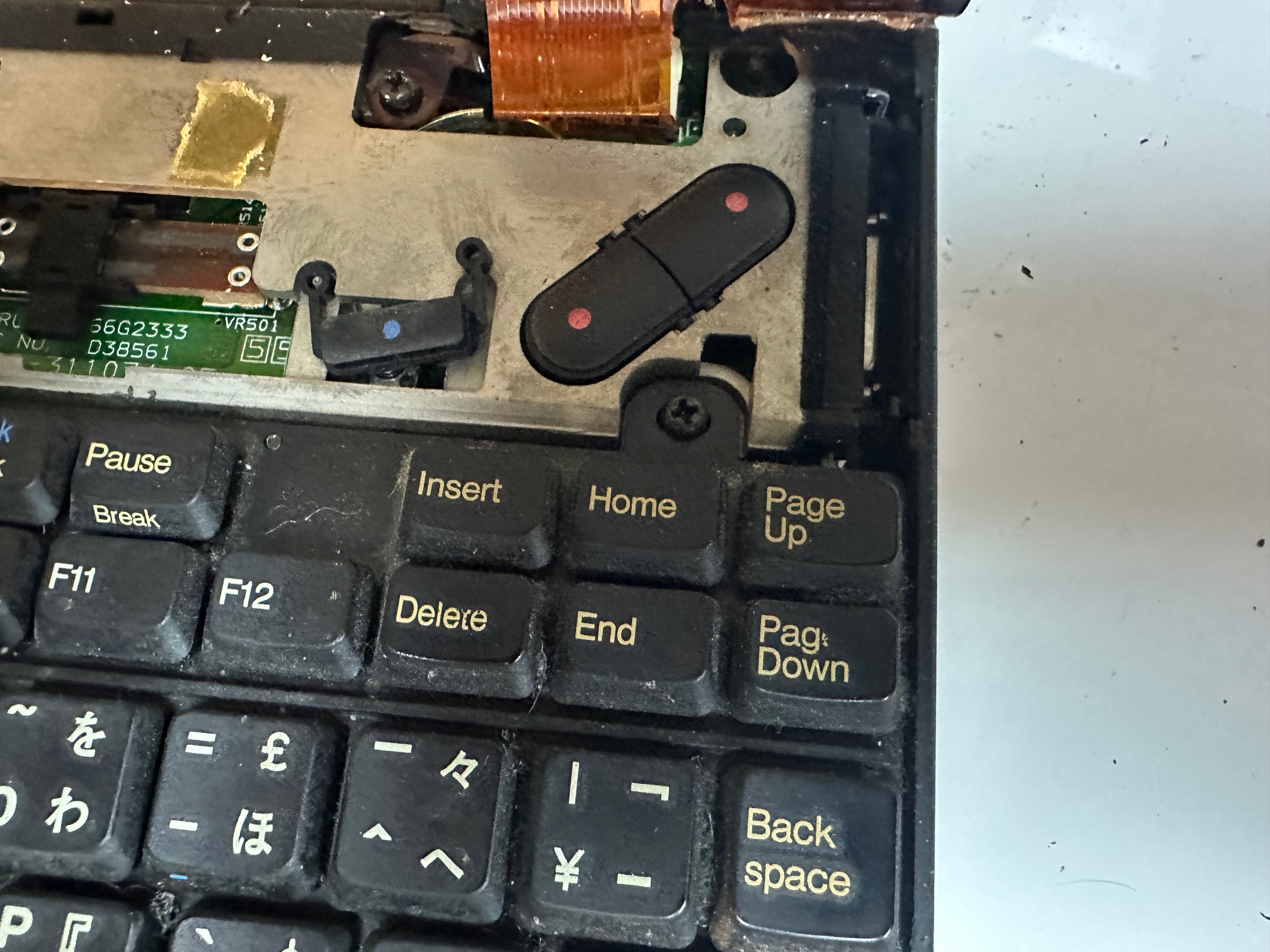

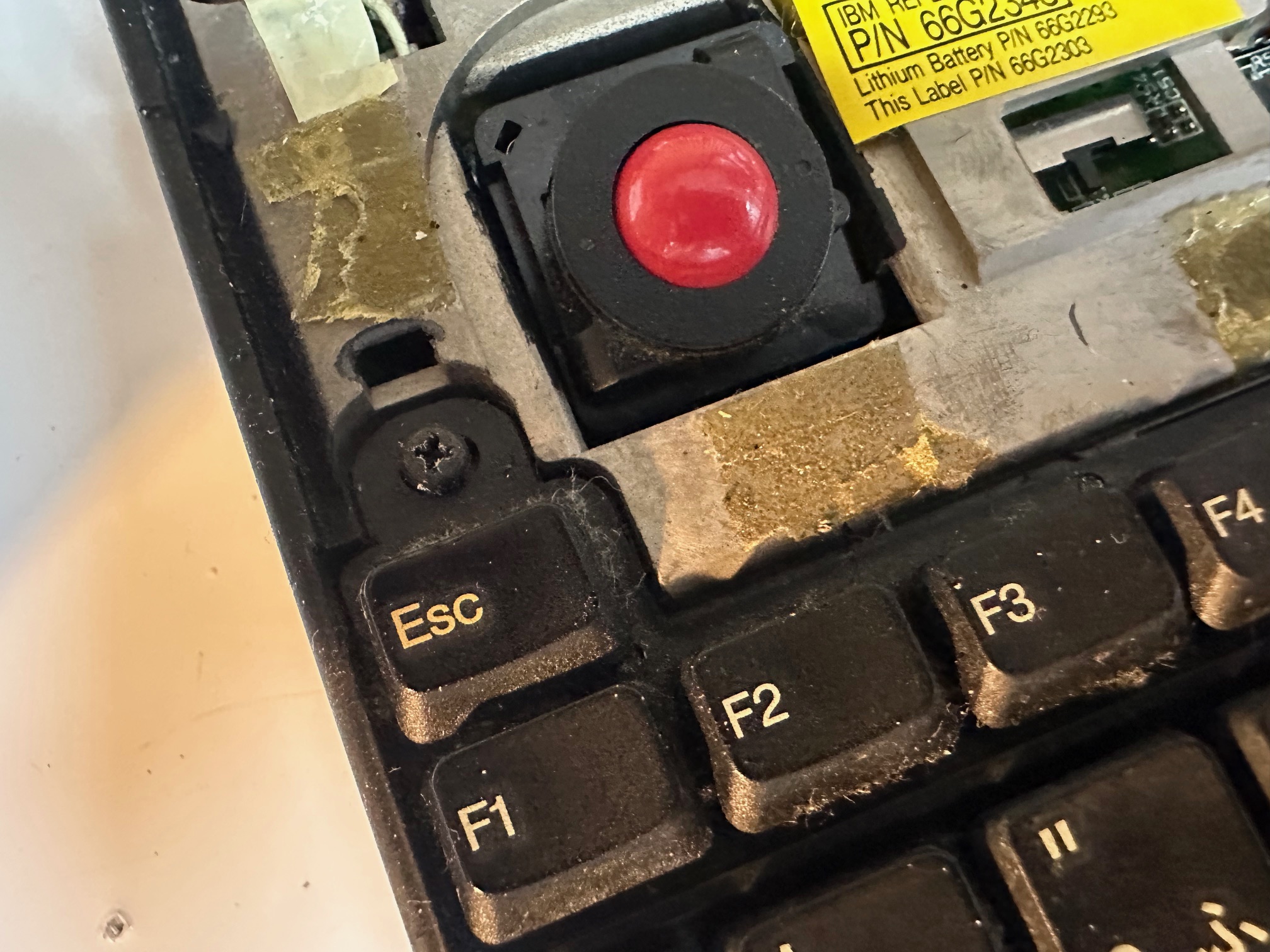

Underneath the bezel above the keyboard are two screws holding the keyboard down:

With the base removed and the top bezel and keyboard loosened, you can get to all the ribbon clips - 3 for the keyboard, one for the hard drive, one for the PS/2 port and one for the screen's ribbon connector. There is also a 2-pin power cable for the display.

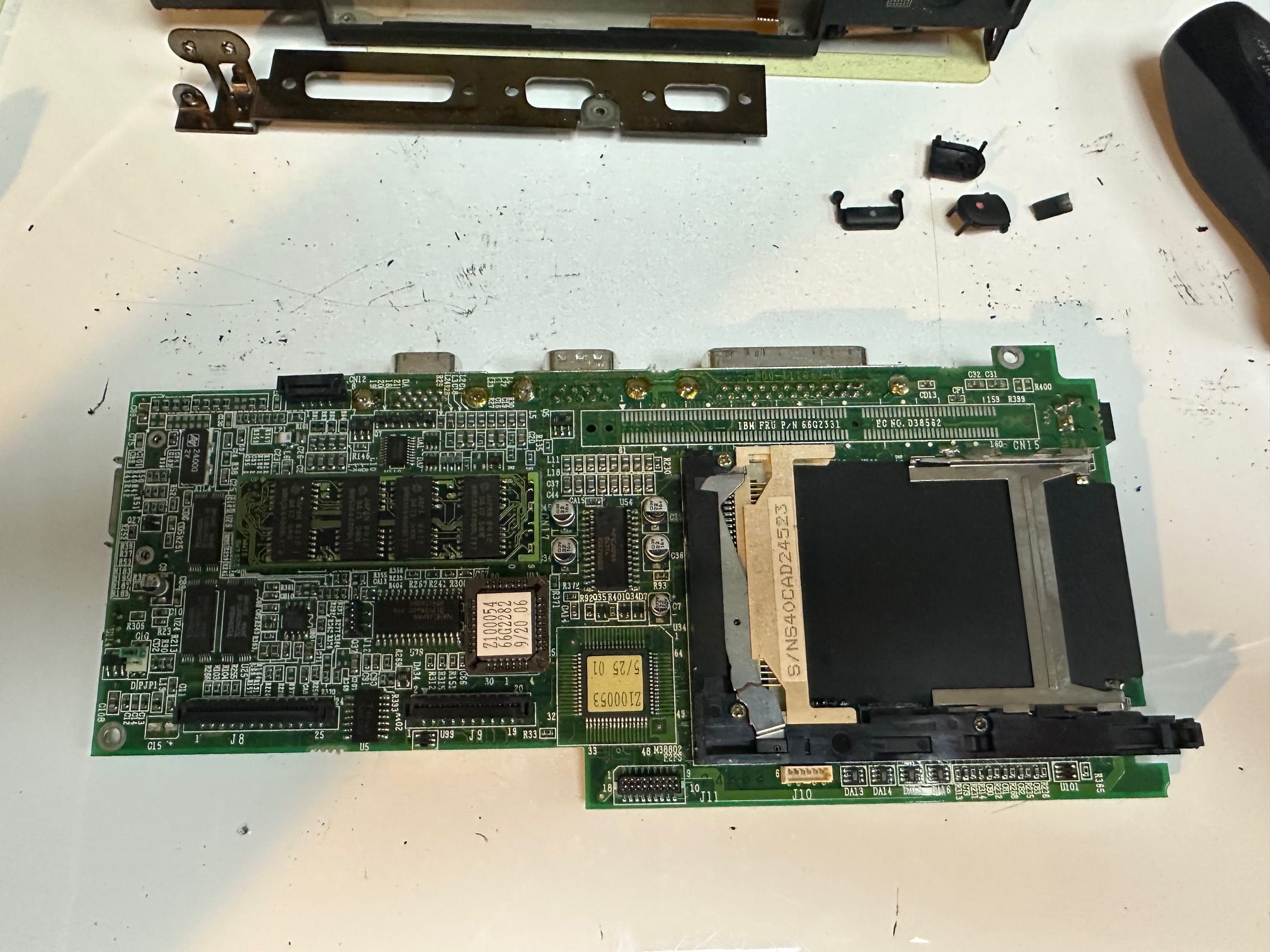

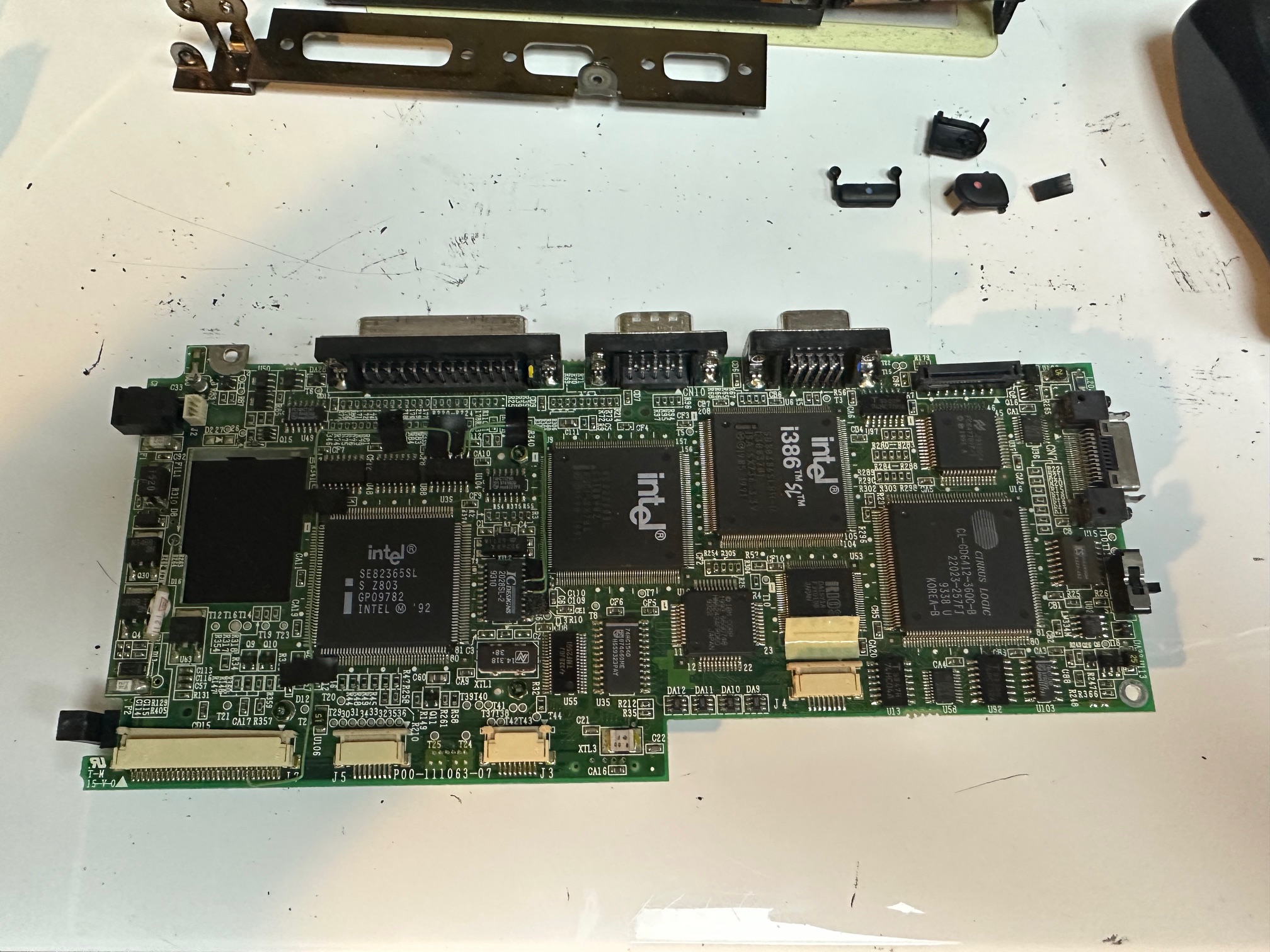

Here are two high resolution images of the mainboard top and bottom:

The display itself is a deeply flawed and fragile design. It's the only LCD i've encountered that is frameless - as in nothing actually holding it together apart from the lid it sits within.

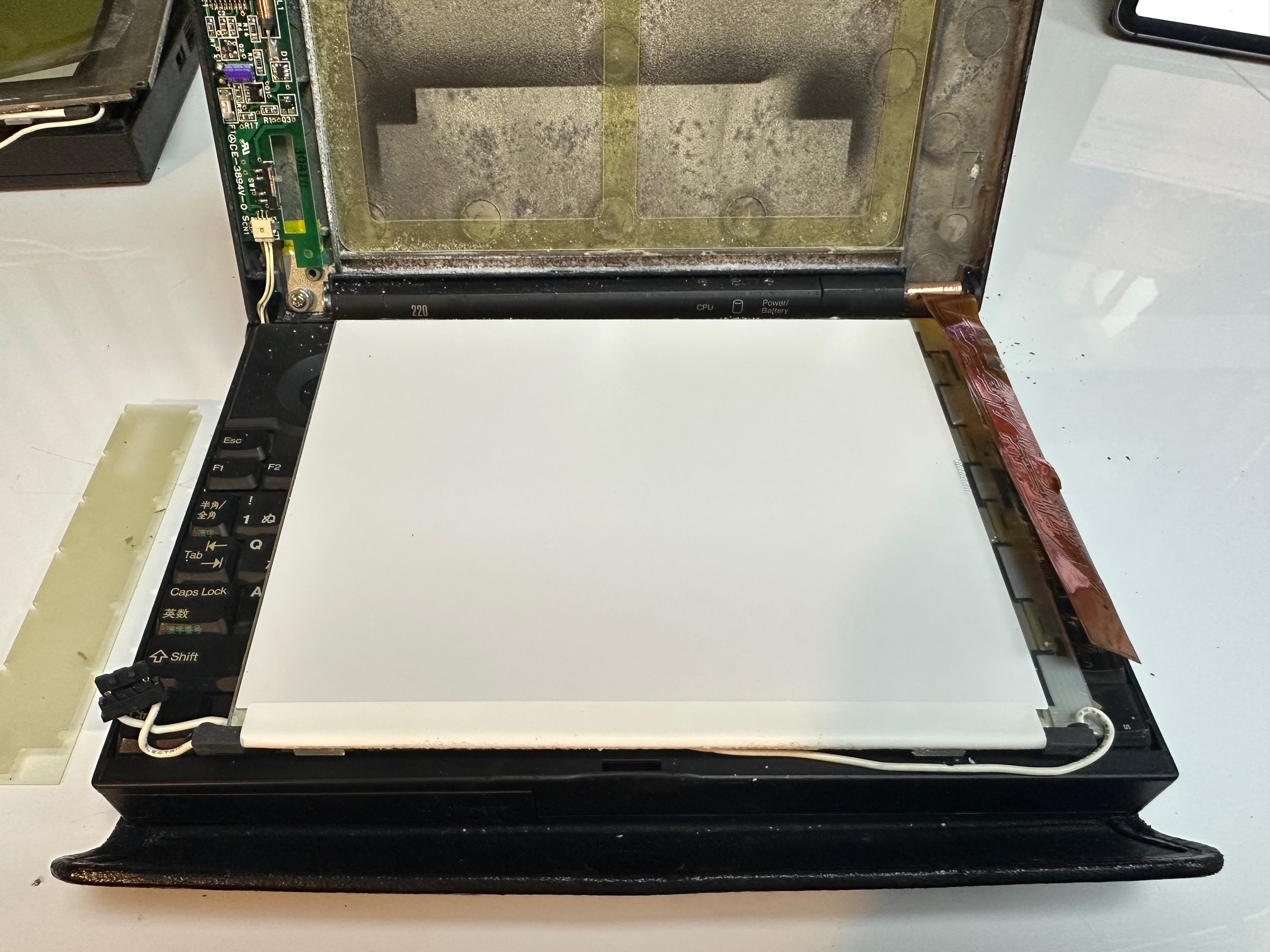

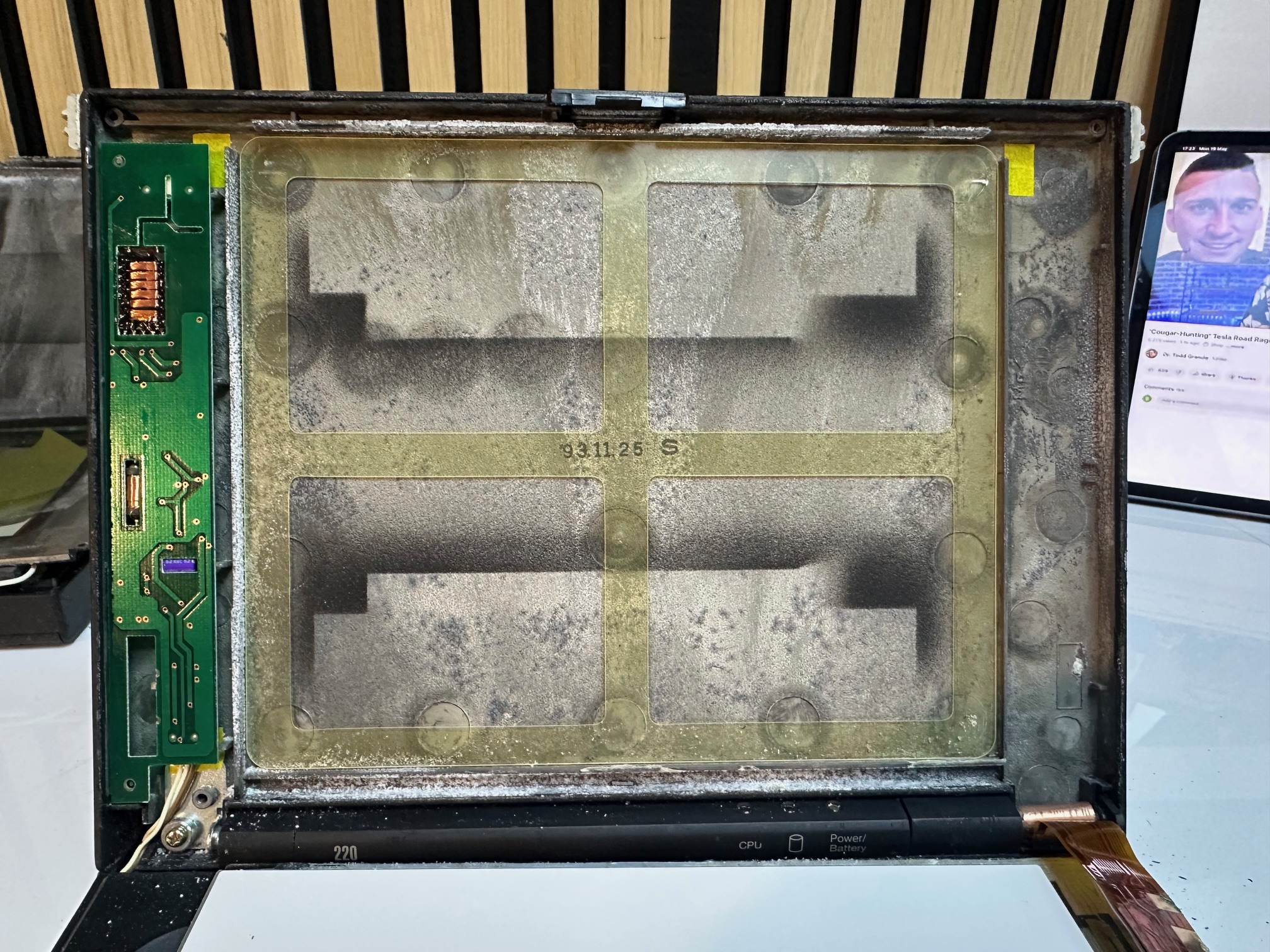

Here is a picture of the display flapped down (viewing the rear of the panel):

And here is behind the panel with the inverter (which is placed 'backwards'):

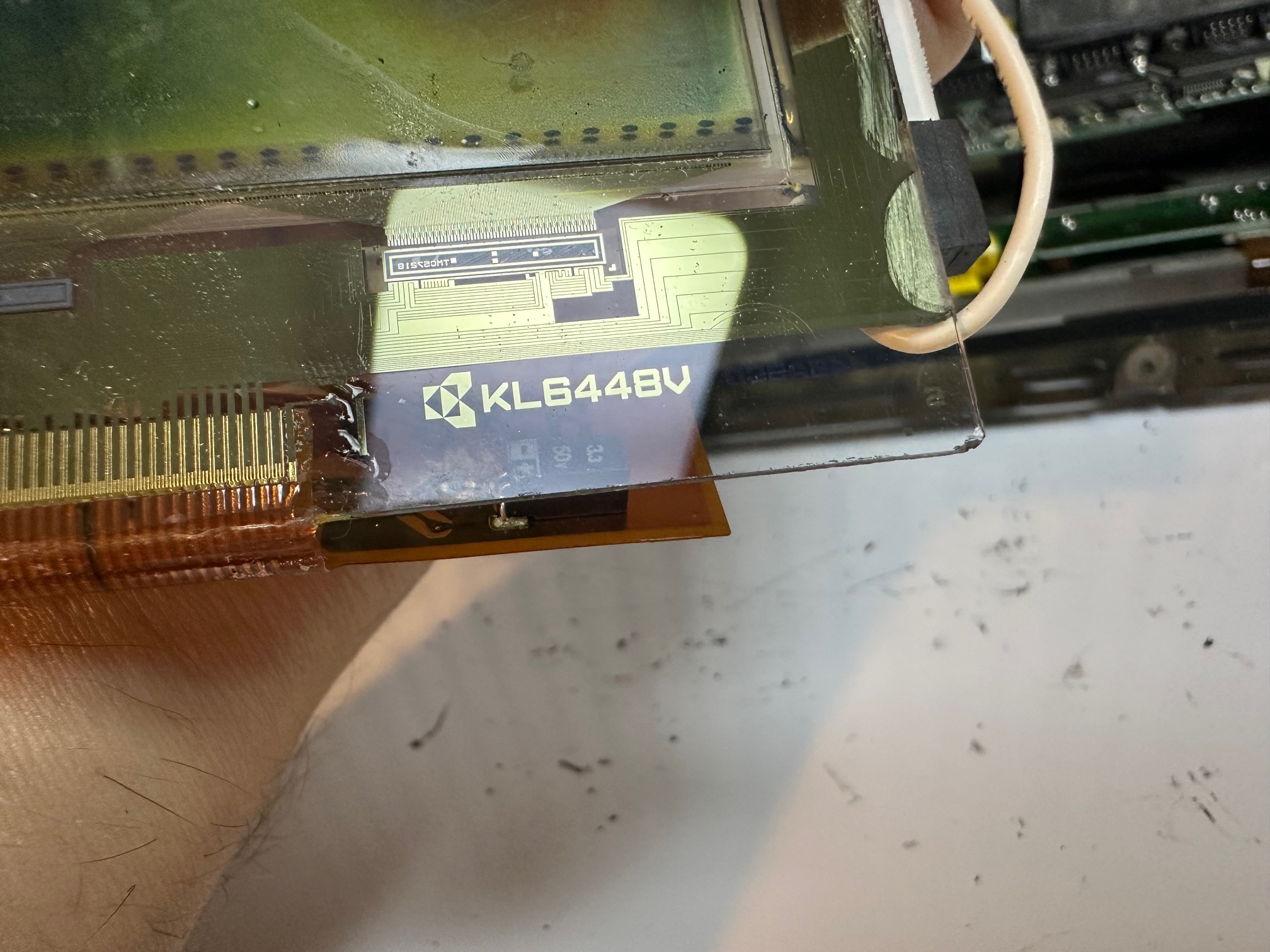

It also doesn't have a make on it (although I suspect it's made by Citizen) and the only model number looks like KL544BV:

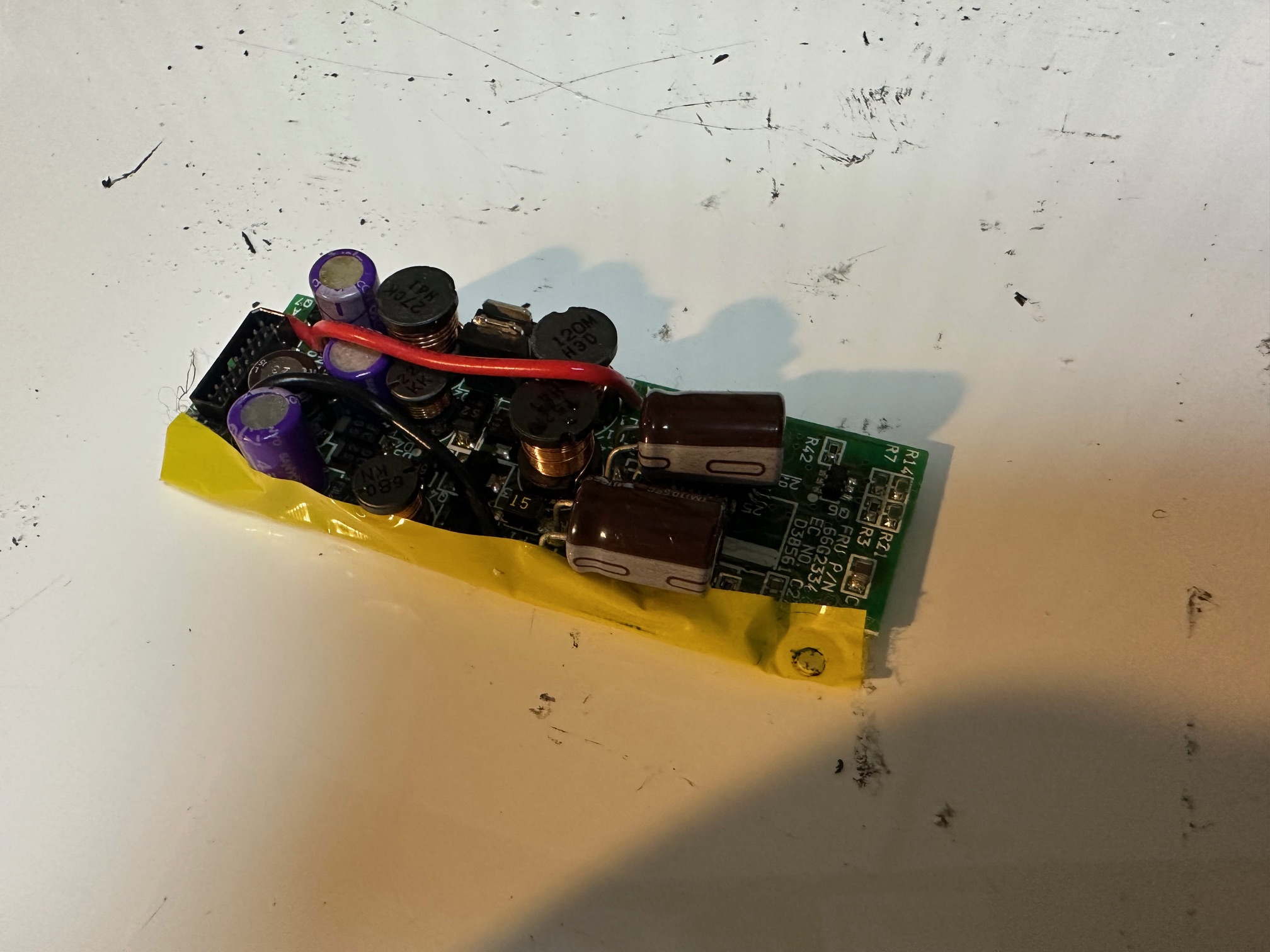

The 220 also has a 'baby' DC board attached to it, which looks like this:

Leaky Caps

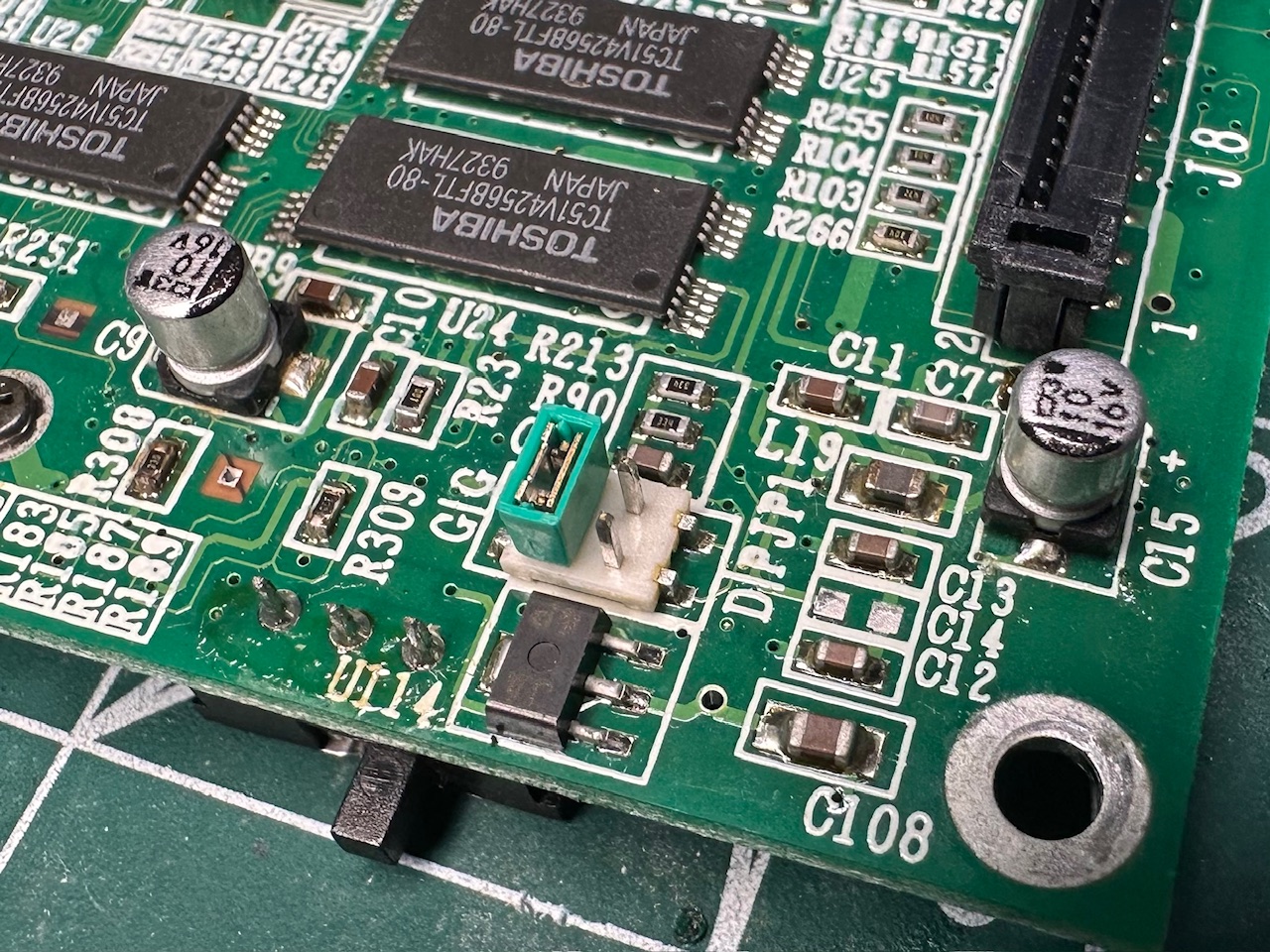

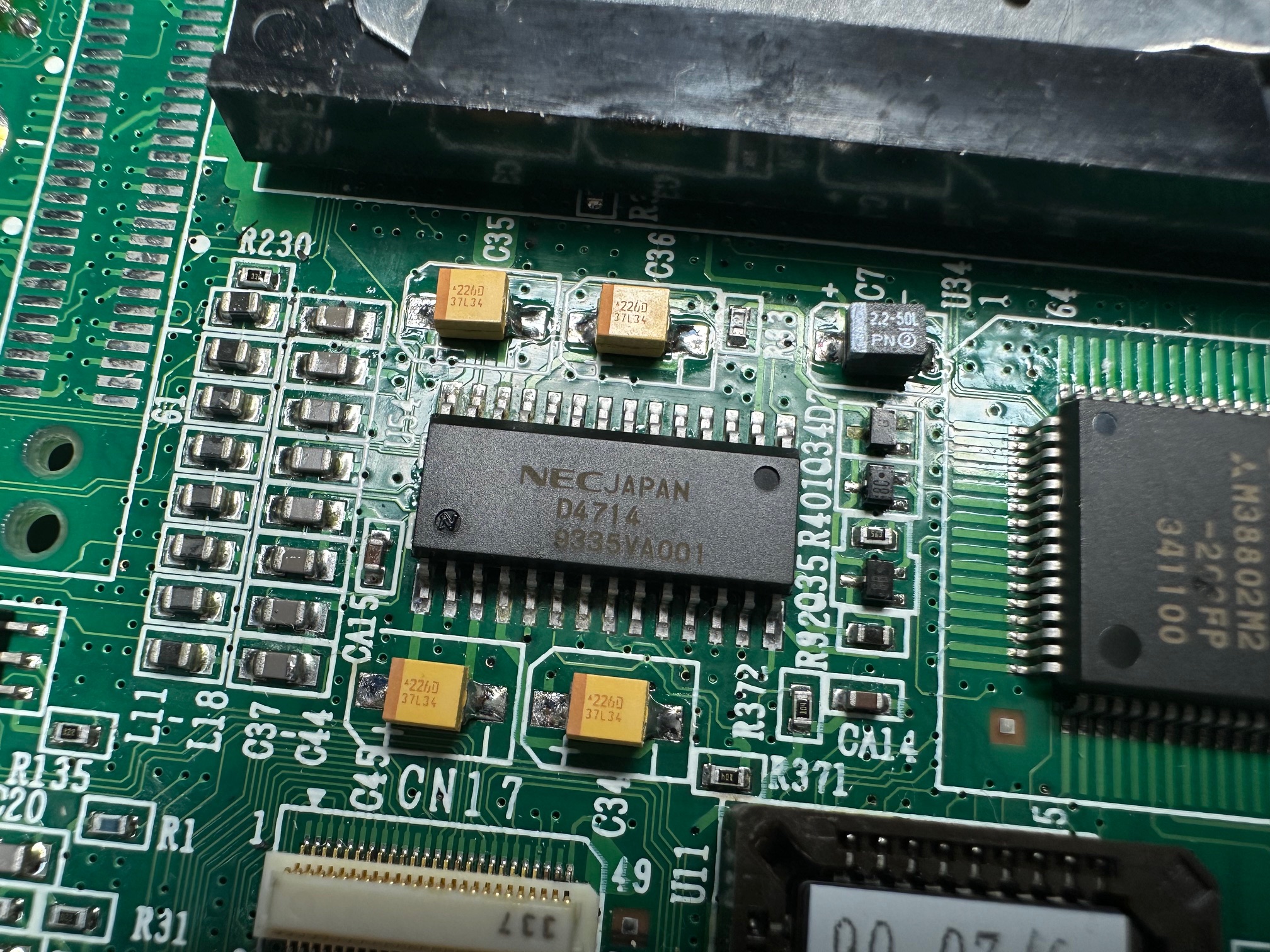

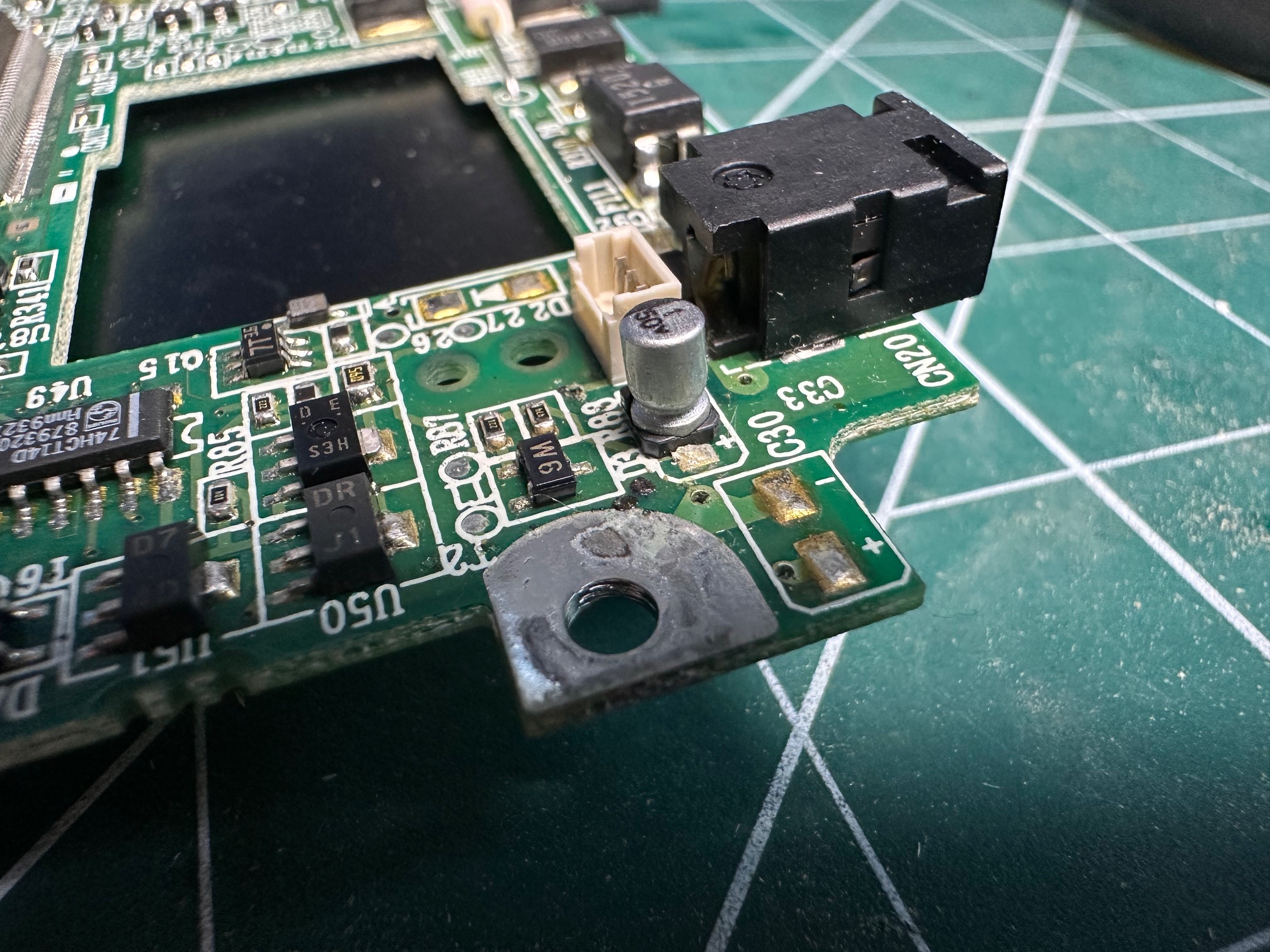

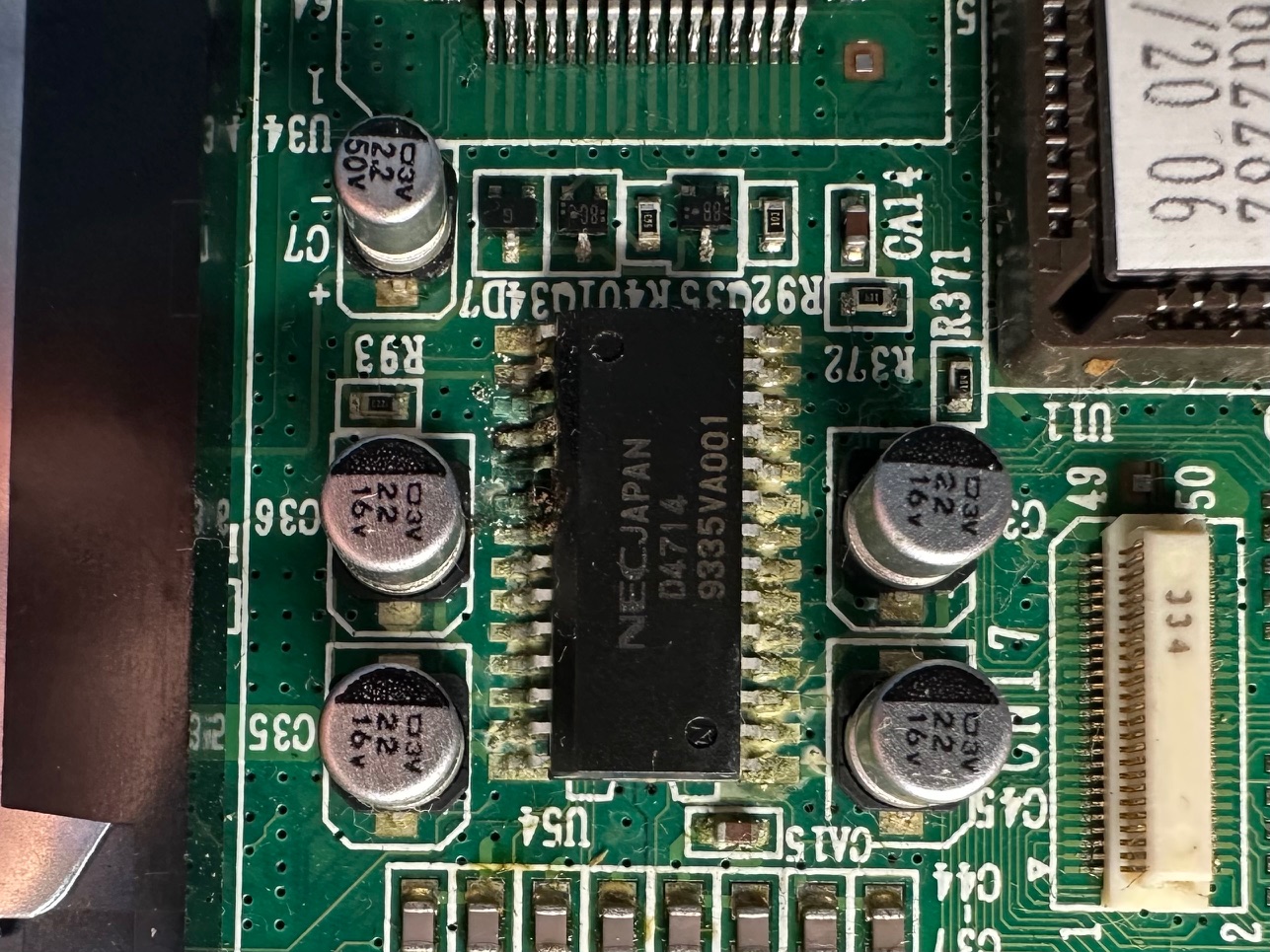

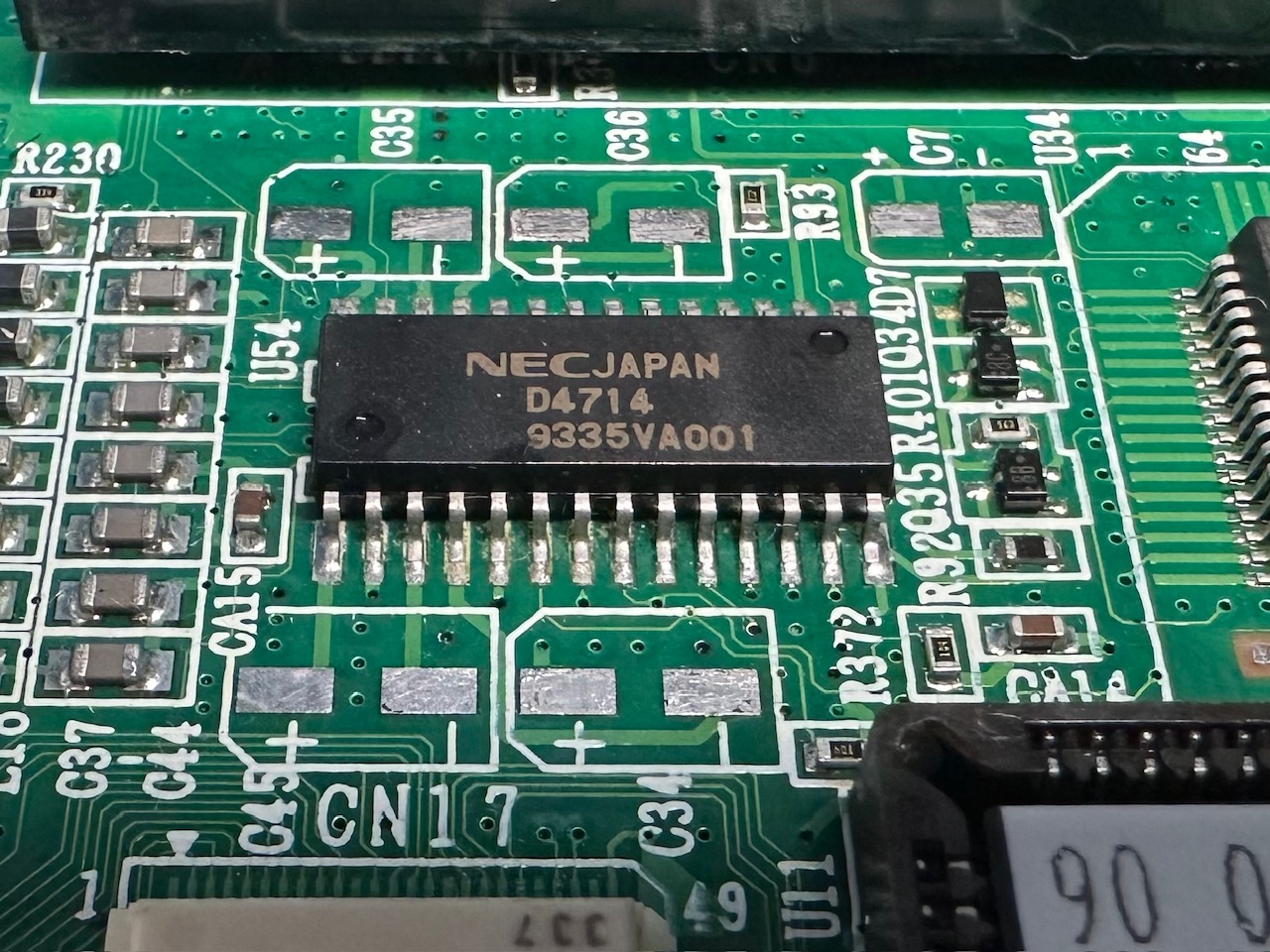

There are 8 surface mounted electrolytic capacitors on the 220 motherboard and all of them will have failed and be leaking. In bad cases, the leaking fluid will rot away other components, like it has done to an NEC IC inside one of mine. The machine still boots and functions reasonably well, so I suspect the NEC IC is doing something which I'm not using - possibly driving the PCMCIA card slot.

7 of the capacitors are really easy to get to by just taking off the base plate - 5 are near to the memory upgrade connector and the other 2 down one end of the same side of the motherboard. The other one is on the other side in one corner of the motherboard. I replaced all of mine with tantalum capacitors and the machine still boots as it was before. Tanatlums cannot leak and simply short when failed.

Ancilliary Batteries

There was three types of battery onboard the 220. The main one runs from AA batteries. The second is a 2477 CMOS battery, which is still widely available. The fact it's a cell battery means it's quite unlikely to leak. The third battery is the 'bridge' hibernation battery, which would keep the system running whilst the main battery was swapped. This one is soldered in and should be removed as a possible source of future damage.

Tiny Daughterboard

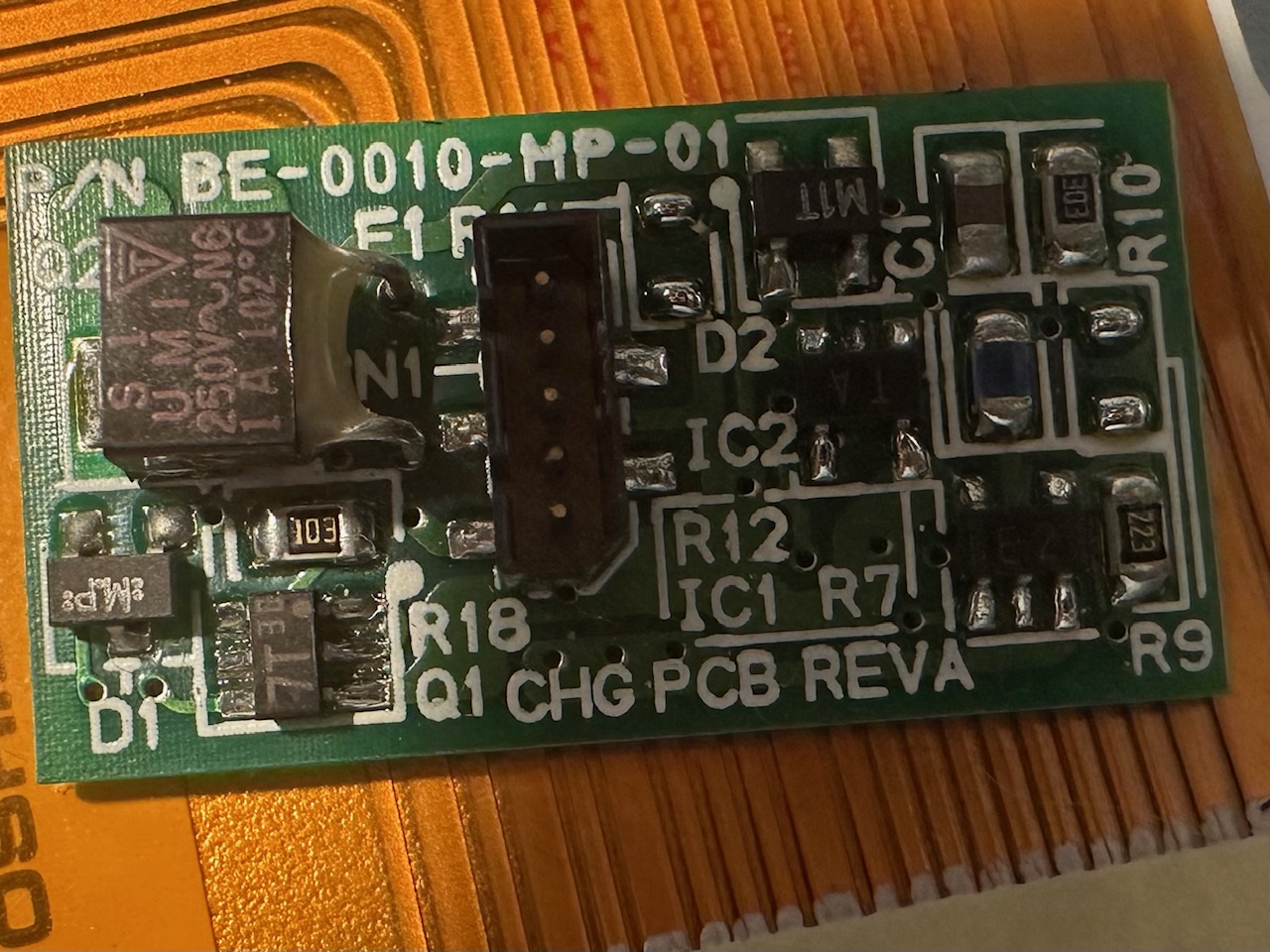

In one of my 220 machines, next to the RAM upgrade there is a tiny daughterboard BE-0010-HP-01 which I don't know what it does.
